Coupler
Unit of Measure
1 2

XM Part Number


Spec Sheet

Buy Direct
(Intl. add 15%)

Feature Mfr

Type

Low Freq

High Freq

Coupling

IL

Isolation

Amp Bal

Phase Bal

Directivity

PKG

RoHS

XM-B7E1-0404C
0404B
 		N/A FPC07802
$331.00 N/A DLI N/A Directional N/A 0 MHz N/A 40000 MHz N/A 30 dB N/A 3.0 dB N/A N/A N/A N/A N/A SMT N/A
XR-B7E1-0404C
XM-B7E1-0404D
1398_WEB
 		N/A FPC07802
$121.00 N/A DLI N/A Directional N/A 0 MHz N/A 40000 MHz N/A 30 dB N/A 3.0 dB N/A N/A N/A N/A N/A SMT N/A
XR-B7E1-0404D
XM-B7E2-0404C
0404B
 		N/A FPC07803
$320.00 N/A DLI N/A Directional N/A 0 MHz N/A 40000 MHz N/A 20 dB N/A 3.0 dB N/A N/A N/A N/A N/A SMT N/A
XR-B7E2-0404C
XM-B7E2-0404D
1398_WEB
 		N/A FPC07803
$105.00 N/A DLI N/A Directional N/A 0 MHz N/A 40000 MHz N/A 20 dB N/A 3.0 dB N/A N/A N/A N/A N/A SMT N/A
XR-B7E2-0404D
XM-B7F6-0609C
0609C
 		N/A IPP-7046
$420.00 N/A IPP N/A Hybrid N/A 500 MHz N/A 1000 MHz N/A 3 dB N/A 0.25 dB N/A N/A N/A N/A N/A SMT
XM-B7F6-0609D
0727_WEB
 		N/A IPP-7046
$175.00 N/A IPP N/A Hybrid N/A 500 MHz N/A 1000 MHz N/A 3 dB N/A 0.25 dB N/A N/A N/A N/A N/A SMT
XM-B7H5-0409C
0409A
 		N/A IPP-7151
$358.00 N/A IPP N/A Hybrid N/A 1000 MHz N/A 2500 MHz N/A 3 dB N/A 0.5 dB N/A 14 dB N/A 0.9 dB N/A 90 ± 5 Deg N/A N/A SMT
XM-B7H5-0409D
0952_WEB
 		N/A IPP-7151
$163.00 N/A IPP N/A Hybrid N/A 1000 MHz N/A 2500 MHz N/A 3 dB N/A 0.5 dB N/A 14 dB N/A 0.9 dB N/A 90 ± 5 Deg N/A N/A SMT
XM-B7J3-1212C
0404C
 		N/A SEDC-10-63+
$781.00 N/A Mini-Circuits N/A Directional N/A 2700 MHz N/A 6000 MHz N/A 11.8 dB N/A 0.6 dB N/A N/A N/A N/A N/A SMT N/A
XR-B7J3-1212C
XM-B7J3-1212D
0989_WEB
 		N/A SEDC-10-63+
$405.00 N/A Mini-Circuits N/A Directional N/A 2700 MHz N/A 6000 MHz N/A 11.8 dB N/A 0.6 dB N/A N/A N/A N/A N/A SMT N/A
XR-B7J3-1212D
XM-B9Y3-0404C
 		N/A FPC06074
$337.00 N/A DLI N/A Directional N/A 8000 MHz N/A 12000 MHz N/A 12 dB N/A 1 dB N/A N/A N/A N/A N/A SMT N/A
XR-B9Y3-0404C
XM-B9Y3-0404D
1736_WEB
 		N/A FPC06074
$130.00 N/A DLI N/A Directional N/A 8000 MHz N/A 12000 MHz N/A 12 dB N/A 1 dB N/A N/A N/A N/A N/A SMT N/A
XR-B9Y3-0404D
XM-B9Y4-0404C
0404C
 		N/A FPC06077
$300.00 N/A DLI N/A Directional N/A 5000 MHz N/A 14000 MHz N/A 25 dB N/A 0.6 dB N/A N/A N/A N/A N/A SMT N/A
XR-B9Y4-0404C
XM-B9Y4-0404D
1736_WEB
 		N/A FPC06077
$141.00 N/A DLI N/A Directional N/A 5000 MHz N/A 14000 MHz N/A 25 dB N/A 0.6 dB N/A N/A N/A N/A N/A SMT N/A
XR-B9Y4-0404D
XM-C3H6-0404C
0404C
 		N/A 1P510S
$223.00 N/A Anaren N/A Directional N/A 1700 MHz N/A 2000 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3H6-0404C
XM-C3H6-0404D
0072_WEB
 		N/A 1P510S
$64.00 N/A Anaren N/A Directional N/A 1700 MHz N/A 2000 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3H6-0404D
XM-C3H7-0404C
0404C
 		N/A 1P520S
$223.00 N/A Anaren N/A Directional N/A 1700 MHz N/A 2000 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3H7-0404C
XM-C3H7-0404D
0072_WEB
 		N/A 1P520S
$64.00 N/A Anaren N/A Directional N/A 1700 MHz N/A 2000 MHz N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C3H7-0404D
XM-C3H8-0404C
0404C
 		N/A 1P610S
$223.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3H8-0404C
XM-C3H8-0404D
0072_WEB
 		N/A 1P610S
$64.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C3H8-0404D
XM-C3H9-0404C
0404C
 		N/A 1P620S
$223.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3H9-0404C
XM-C3H9-0404D
0072_WEB
 		N/A 1P620S
$64.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C3H9-0404D
XM-C3J1-0404C
0404C
 		N/A JP506S
$223.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3J1-0404C
XM-C3J1-0404D
0072_WEB
 		N/A JP506S
$64.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C3J1-0404D
XM-C3J2-0404C
0404C
 		N/A JP510S
$223.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3J2-0404C
XM-C3J2-0404D
0072_WEB
 		N/A JP510S
$64.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C3J2-0404D
XM-C3J3-0404C
0404C
 		N/A JP520S
$223.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A 10 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3J3-0404C
XM-C3J3-0404D
0072_WEB
 		N/A JP520S
$64.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C3J3-0404D
XM-C3J4-0404C
0404C
 		N/A X3C07P1-04S
$229.00 N/A Anaren N/A Directional N/A 600 MHz N/A 900 MHz N/A 4 dB N/A 0.22 dB N/A N/A N/A 90 ± 4.0 Deg N/A 23 dB N/A SMT N/A
XR-C3J4-0404C
XM-C3J4-0404D
0072_WEB
 		N/A X3C07P1-04S
$71.00 N/A Anaren N/A Directional N/A 600 MHz N/A 900 MHz N/A 4 dB N/A 0.22 dB N/A N/A N/A 90 ± 4.0 Deg N/A 23 dB N/A SMT N/A
XR-C3J4-0404D
XM-C3J5-0404C
0404C
 		N/A X3C09P1-04S
$229.00 N/A Anaren N/A Directional N/A 800 MHz N/A 1000 MHz N/A 4 dB N/A 0.2 dB N/A N/A N/A 90 ± 4.0 Deg N/A 23 dB N/A SMT N/A
XR-C3J5-0404C
XM-C3J5-0404D
0072_WEB
 		N/A X3C09P1-04S
$70.00 N/A Anaren N/A Directional N/A 800 MHz N/A 1000 MHz N/A 4 dB N/A 0.2 dB N/A N/A N/A 90 ± 4.0 Deg N/A 23 dB N/A SMT N/A
XR-C3J5-0404D
XM-C3J6-0404C
0404C
 		N/A X3C19P1-04S
$229.00 N/A Anaren N/A Directional N/A 1500 MHz N/A 2000 MHz N/A 4 dB N/A 0.15 dB N/A N/A N/A 90 ± 4.0 Deg N/A 20 dB N/A SMT N/A
XR-C3J6-0404C
XM-C3J6-0404D
0072_WEB
 		N/A X3C19P1-04S
$70.00 N/A Anaren N/A Directional N/A 1500 MHz N/A 2000 MHz N/A 4 dB N/A 0.15 dB N/A N/A N/A 90 ± 4.0 Deg N/A 20 dB N/A SMT N/A
XR-C3J6-0404D
XM-C3J7-0404C
0404C
 		N/A X3C21P1-04S
$229.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A 4 dB N/A 0.15 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3J7-0404C
XM-C3J7-0404D
0072_WEB
 		N/A X3C21P1-04S
$70.00 N/A Anaren N/A Directional N/A 2000 MHz N/A 2300 MHz N/A 4 dB N/A 0.15 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3J7-0404D
XM-C3J8-0404C
0404C
 		N/A X3C25P1-02S
$229.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 1.9 dB N/A 0.18 dB N/A N/A N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3J8-0404C
XM-C3J8-0404D
0072_WEB
 		N/A X3C25P1-02S
$71.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 1.9 dB N/A 0.18 dB N/A N/A N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3J8-0404D
XM-C3J9-0404C
0404C
 		N/A X3C25P1-04S
$229.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 4 dB N/A 0.18 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3J9-0404C
XM-C3J9-0404D
0072_WEB
 		N/A X3C25P1-04S
$71.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 4 dB N/A 0.18 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3J9-0404D
XM-C3K1-0404C
0404C
 		N/A XC0900P-10S
$225.00 N/A Anaren N/A Directional N/A 800 MHz N/A 1000 MHz N/A 10 dB N/A 0.38 dB N/A N/A N/A N/A 14 dB N/A SMT N/A
XR-C3K1-0404C
XM-C3K1-0404D
0072_WEB
 		N/A XC0900P-10S
$67.00 N/A Anaren N/A Directional N/A 800 MHz N/A 1000 MHz N/A 10 dB N/A 0.38 dB N/A N/A N/A N/A 14 dB N/A SMT N/A
XR-C3K1-0404D
XM-C3K2-0404C
0404C
 		N/A XC2500P-20S
$223.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 20 dB N/A 0.2 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3K2-0404C
XM-C3K2-0404D
0072_WEB
 		N/A XC2500P-20S
$64.00 N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 20 dB N/A 0.2 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3K2-0404D
XM-C3K3-0404C
0404C
 		N/A XC3500P-20S
$293.00 N/A Anaren N/A Directional N/A 3300 MHz N/A 3800 MHz N/A 20 dB N/A 0.2 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3K3-0404C
XM-C3K3-0404D
0072_WEB
 		N/A XC3500P-20S
$76.00 N/A Anaren N/A Directional N/A 3300 MHz N/A 3800 MHz N/A 20 dB N/A 0.2 dB N/A N/A N/A N/A 20 dB N/A SMT N/A
XR-C3K3-0404D
XM-C3K4-0404C
0404C
 		N/A XEC24P3-30G
$300.00 N/A Anaren N/A Directional N/A 2400 MHz N/A 2500 MHz N/A 30 dB N/A 0.1 dB N/A N/A N/A N/A N/A SMT N/A
XR-C3K4-0404C
XM-C3K4-0404D
0072_WEB
 		N/A XEC24P3-30G
$81.00 N/A Anaren N/A Directional N/A 2400 MHz N/A 2500 MHz N/A 30 dB N/A 0.1 dB N/A N/A N/A N/A N/A SMT N/A
XR-C3K4-0404D
XM-C3K5-0404C
0404C
 		N/A 1P503AS
$221.00 N/A Anaren N/A Hybrid N/A 1700 MHz N/A 2000 MHz N/A 3 dB N/A 0.25 dB N/A 18 dB N/A 0.45 dB N/A ± 3 Deg N/A N/A SMT N/A
XR-C3K5-0404C
XM-C3K5-0404D
0072_WEB
 		N/A 1P503AS
$63.00 N/A Anaren N/A Hybrid N/A 1700 MHz N/A 2000 MHz N/A 3 dB N/A 0.25 dB N/A 18 dB N/A 0.45 dB N/A ± 3 Deg N/A N/A SMT N/A
XR-C3K5-0404D
XM-C3K6-0404C
0404C
 		N/A 1P603AS
$221.00 N/A Anaren N/A Hybrid N/A 2300 MHz N/A 2700 MHz N/A 3 dB N/A 0.3 dB N/A 20 dB N/A 0.25 dB N/A ± 3 Deg N/A N/A SMT N/A
XR-C3K6-0404C
XM-C3K6-0404D
0072_WEB
 		N/A 1P603AS
$63.00 N/A Anaren N/A Hybrid N/A 2300 MHz N/A 2700 MHz N/A 3 dB N/A 0.3 dB N/A 20 dB N/A 0.25 dB N/A ± 3 Deg N/A N/A SMT N/A
XR-C3K6-0404D
XM-C3K7-0404C
0404C
 		N/A JP503AS
$221.00 N/A Anaren N/A Hybrid N/A 2000 MHz N/A 2300 MHz N/A 3 dB N/A 0.3 dB N/A 20 dB N/A 0.25 dB N/A ± 3 Deg N/A N/A SMT N/A
XR-C3K7-0404C
XM-C3K7-0404D
0072_WEB
 		N/A JP503AS
$63.00 N/A Anaren N/A Hybrid N/A 2000 MHz N/A 2300 MHz N/A 3 dB N/A 0.3 dB N/A 20 dB N/A 0.25 dB N/A ± 3 Deg N/A N/A SMT N/A
XR-C3K7-0404D
XM-C3K8-0404C
0404C
 		N/A X3C07P1-03S
$225.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.2 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3K8-0404C
XM-C3K8-0404D
0072_WEB
 		N/A X3C07P1-03S
$66.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.2 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3K8-0404D
XM-C3K9-0404C
0404C
 		N/A X3C09P1-03S
$225.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.2 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3K9-0404C
XM-C3K9-0404D
0072_WEB
 		N/A X3C09P1-03S
$66.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.2 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3K9-0404D
XM-C3L1-0404C
0404C
 		N/A X3C09P2-03S
$225.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.2 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L1-0404C
XM-C3L1-0404D
0072_WEB
 		N/A X3C09P2-03S
$67.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.2 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L1-0404D
XM-C3L2-0404C
0404C
 		N/A X3C14P1-03S
$295.00 N/A Anaren N/A Hybrid N/A 1200 MHz N/A 1700 MHz N/A 3 dB N/A 0.2 dB N/A 23 dB N/A 0.35 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L2-0404C
XM-C3L2-0404D
0072_WEB
 		N/A X3C14P1-03S
$77.00 N/A Anaren N/A Hybrid N/A 1200 MHz N/A 1700 MHz N/A 3 dB N/A 0.2 dB N/A 23 dB N/A 0.35 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L2-0404D
XM-C3L3-0404C
0404C
 		N/A X3C19P1-03S
$225.00 N/A Anaren N/A Hybrid N/A 1400 MHz N/A 1500 MHz N/A 3 dB N/A 0.15 dB N/A 20 dB N/A 0.5 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L3-0404C
XM-C3L3-0404D
0072_WEB
 		N/A X3C19P1-03S
$66.00 N/A Anaren N/A Hybrid N/A 1400 MHz N/A 1500 MHz N/A 3 dB N/A 0.15 dB N/A 20 dB N/A 0.5 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L3-0404D
XM-C3L4-0404C
0404C
 		N/A X3C19P2-03S
$225.00 N/A Anaren N/A Hybrid N/A 1700 MHz N/A 2000 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L4-0404C
XM-C3L4-0404D
0072_WEB
 		N/A X3C19P2-03S
$67.00 N/A Anaren N/A Hybrid N/A 1700 MHz N/A 2000 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L4-0404D
XM-C3L5-0404C
0404C
 		N/A X3C21P1-03S
$225.00 N/A Anaren N/A Hybrid N/A 2000 MHz N/A 2300 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L5-0404C
XM-C3L5-0404D
0072_WEB
 		N/A X3C21P1-03S
$66.00 N/A Anaren N/A Hybrid N/A 2000 MHz N/A 2300 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L5-0404D
XM-C3L6-0404C
0404C
 		N/A X3C21P2-03S
$225.00 N/A Anaren N/A Hybrid N/A 1800 MHz N/A 2300 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L6-0404C
XM-C3L6-0404D
0072_WEB
 		N/A X3C21P2-03S
$67.00 N/A Anaren N/A Hybrid N/A 1800 MHz N/A 2300 MHz N/A 3 dB N/A 0.22 dB N/A 23 dB N/A 0.22 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L6-0404D
XM-C3L7-0404C
0404C
 		N/A X3C26P1-03S
$297.00 N/A Anaren N/A Hybrid N/A 2300 MHz N/A 2910 MHz N/A 3 dB N/A 0.2 dB N/A 20 dB N/A 0.4 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L7-0404C
XM-C3L7-0404D
0072_WEB
 		N/A X3C26P1-03S
$77.00 N/A Anaren N/A Hybrid N/A 2300 MHz N/A 2910 MHz N/A 3 dB N/A 0.2 dB N/A 20 dB N/A 0.4 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L7-0404D
XM-C3L8-0404C
0404C
 		N/A XC0900P-03AS
$222.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.25 dB N/A 23 dB N/A 0.3 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L8-0404C
XM-C3L8-0404D
0072_WEB
 		N/A XC0900P-03AS
$63.00 N/A Anaren N/A Hybrid N/A 800 MHz N/A 1000 MHz N/A 3 dB N/A 0.25 dB N/A 23 dB N/A 0.3 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L8-0404D
XM-C3L9-0404C
0404C
 		N/A XC1400P-03S
$222.00 N/A Anaren N/A Hybrid N/A 1200 MHz N/A 2600 MHz N/A 3 dB N/A 0.32 dB N/A 23 dB N/A 0.3 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L9-0404C
XM-C3L9-0404D
0072_WEB
 		N/A XC1400P-03S
$63.00 N/A Anaren N/A Hybrid N/A 1200 MHz N/A 2600 MHz N/A 3 dB N/A 0.32 dB N/A 23 dB N/A 0.3 dB N/A 90 ± 4.0 Deg N/A N/A SMT N/A
XR-C3L9-0404D
XM-C3M1-0404C
0404C
 		N/A XC2650P-03S
$294.00 N/A Anaren N/A Hybrid N/A 2650 MHz N/A 2800 MHz N/A 3 dB N/A 0.25 dB N/A 21 dB N/A 0.25 dB N/A 90 ± 3 Deg N/A N/A SMT N/A
XR-C3M1-0404C
XM-C3M1-0404D
0072_WEB
 		N/A XC2650P-03S
$75.00 N/A Anaren N/A Hybrid N/A 2650 MHz N/A 2800 MHz N/A N/A N/A 20 dB N/A N/A N/A N/A SMT N/A
XR-C3M1-0404D
XM-C3M2-0404D
0072_WEB
 		N/A XC3500P-03S
$63.00 N/A Anaren N/A Hybrid N/A 3300 MHz N/A 3850 MHz N/A 3 dB N/A 0.25 dB N/A 21 dB N/A 0.25 dB N/A 90 ± 3 Deg N/A N/A SMT N/A
XR-C3M2-0404D
XM-C447-0404C
0404B
 		N/A $214.00 N/A X-Microwave N/A Resistive N/A 0 MHz N/A 27000 MHz N/A N/A 4 dB N/A N/A N/A N/A N/A SMT N/A
XR-C447-0404C
XM-C447-0404D
1490_WEB
 		N/A $56.00 N/A X-Microwave N/A Resistive N/A 0 MHz N/A 27000 MHz N/A N/A 4 dB N/A N/A N/A N/A N/A SMT N/A
XR-C447-0404D
XM-C6L9-0409D
1615_WEB
 		N/A C0409J5003AHF
$108.00 N/A Anaren N/A Hybrid N/A 400 MHz N/A 900 MHz N/A 3 dB N/A 0.8 dB N/A N/A N/A N/A N/A SMT N/A
XR-C6L9-0409D
XM-C7B4-0404C
0404C
 		N/A EDC21-24+
$356.00 N/A Mini-Circuits N/A Directional N/A N/A N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C7B4-0404C
XM-C7B4-0404D
0813_WEB
 		N/A EDC21-24+
$121.00 N/A Mini-Circuits N/A Directional N/A N/A N/A N/A N/A N/A N/A N/A N/A SMT N/A
XR-C7B4-0404D
XM-C7V2-0604C
0604G
 		N/A FPC07234
$370.00 N/A DLI N/A Directional N/A 2000 MHz N/A 18000 MHz N/A 10 dB N/A 1.2 dB N/A N/A N/A N/A N/A N/A
XR-C7V2-0604C
XM-C7V2-0604D
1355_WEB
 		N/A FPC07234
$155.00 N/A DLI N/A Directional N/A 2000 MHz N/A 18000 MHz N/A 10 dB N/A 1.2 dB N/A N/A N/A N/A N/A N/A
XR-C7V2-0604D
XM-C8L6-0404D
1456_WEB
 		N/A EDC10-273+
$126.00 N/A Mini-Circuits N/A Wideband N/A 6000 MHz N/A 26500 MHz N/A 10 dB N/A 1.5 dB N/A N/A N/A N/A 15 dB N/A SMT N/A
XR-C8L6-0404D
XM-C9R4-0409D
1928_WEB
 		N/A C0727J5003AHF
$116.00 N/A Anaren N/A Hybrid N/A 700 MHz N/A 2700 MHz N/A 3 dB N/A 0.8 dB N/A N/A 2.3 dB N/A 6.5 Deg N/A N/A SMT N/A
XR-C9R4-0409D
XM-D393-0409D

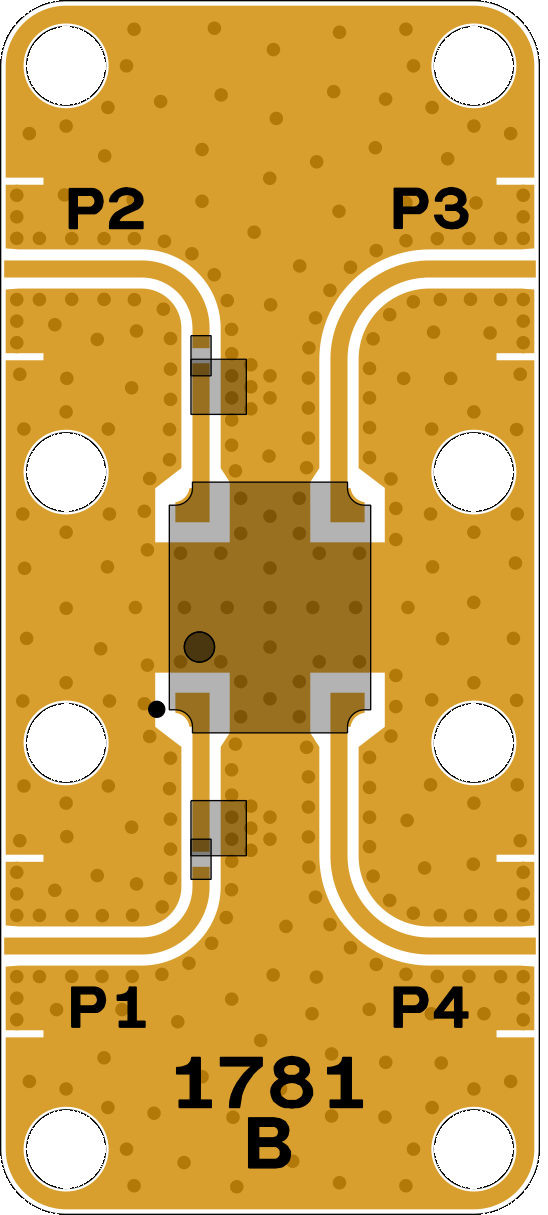

1781
 		N/A X3C26P1-03S
QUOTE N/A Anaren N/A N/A 2300 MHz N/A 2900 MHz N/A N/A 0.2 dB N/A 20 dB N/A N/A N/A N/A N/A
XR-D393-0409D
XM-D394-0409D
1781
 		N/A XC3500P-03S
QUOTE N/A Anaren N/A N/A 3300 MHz N/A 3800 MHz N/A N/A 0.25 dB N/A 21 dB N/A N/A N/A N/A N/A
XR-D394-0409D
XM-D3L2-0404D
2506_WEB
 		N/A FPC06076
QUOTE N/A DLI N/A N/A 4000 MHz N/A 8000 MHz N/A 22 dB N/A 0.3 dB N/A N/A N/A N/A N/A N/A
XR-D3L2-0404D
XM-D4J7-0409D
1992_WEB
 		N/A X4C30J1-20G
QUOTE N/A Anaren N/A Directional N/A 2200 MHz N/A 3300 MHz N/A N/A 0.12 dB N/A N/A N/A N/A N/A N/A
XR-D4J7-0409D
XM-D4J8-0404D
N/A DC2327J5005AHF
QUOTE N/A Anaren N/A Directional N/A 2300 MHz N/A 2700 MHz N/A 5 dB N/A 0.3 dB N/A N/A N/A N/A N/A N/A
XR-D4J8-0404D
XM-D8E4-0409D
3189_WEB
 		N/A PSC18H07S
QUOTE N/A Nuvotronics N/A Hybrid N/A 6000 MHz N/A 18000 MHz N/A -30 dB N/A 0.3 dB N/A 30 dB N/A 0.5 dB N/A 90 Deg N/A N/A SMT
XM-D8E5-0409D
3190_WEB
 		N/A PSC50D07S
QUOTE N/A Nuvotronics N/A Directional N/A 18000 MHz N/A 50000 MHz N/A -20 dB N/A 0.2 dB N/A 35 dB N/A N/A N/A 10 dB N/A SMT
XM-D8J8-1415D
3002_WEB
 		N/A IPP-7116
$306.00 N/A IPP N/A Hybrid N/A 0.225 MHz N/A 2000 MHz N/A N/A 0.8 dB N/A 17 dB N/A 1 dB N/A 5 Deg N/A N/A SMT
XM-D8J9-0919D
3004_WEB
 		N/A IPP-7015
QUOTE N/A IPP N/A Hybrid N/A 1000 MHz N/A 4200 MHz N/A N/A 0.5 dB N/A 18 dB N/A 0.6 dB N/A 5 Deg N/A N/A SMT
XM-D8K1-1204D
3010_WEB
 		N/A IPP-7093
QUOTE N/A IPP N/A Hybrid N/A 2000 MHz N/A 8000 MHz N/A N/A 0.8 dB N/A 15 dB N/A 0.65 dB N/A 8 Deg N/A N/A SMT
XM-D8K2-0609D
3005_WEB
 		N/A IPP-7111
QUOTE N/A IPP N/A Hybrid N/A 2000 MHz N/A 6000 MHz N/A N/A 0.25 dB N/A 17 dB N/A 1.4 dB N/A 5 Deg N/A N/A SMT
XM-D8K3-0409D
2999_WEB
 		N/A IPP-7112
QUOTE N/A IPP N/A Hybrid N/A 8000 MHz N/A 12000 MHz N/A N/A 0.3 dB N/A 17 dB N/A 0.55 dB N/A 6 Deg N/A N/A SMT
XM-D8K4-1212D
3023_WEB
 		N/A IPP-8002
QUOTE N/A IPP N/A Bi-Directional N/A 0.225 MHz N/A 0.45 MHz N/A 30 dB N/A 0.25 dB N/A N/A N/A N/A 16 dB N/A SMT
XM-D8K6-1409D
3024_WEB
 		N/A IPP-8070
QUOTE N/A IPP N/A Directional N/A 0.02 MHz N/A 1000 MHz N/A 50 dB N/A 0.3 dB N/A N/A N/A N/A 20 dB N/A SMT
XM-D8K7-1414D
3022_WEB
 		N/A IPP-8071
QUOTE N/A IPP N/A Directional N/A 0.002 MHz N/A 0.1 MHz N/A 20 dB N/A 0.25 dB N/A N/A N/A N/A 20 dB N/A SMT
XM-D8K8-0809D
3025_WEB
 		N/A IPP-8111
QUOTE N/A IPP N/A Directional N/A 2000 MHz N/A 6000 MHz N/A 20 dB N/A 0.35 dB N/A N/A N/A N/A 17 dB N/A SMT
Unit of Measure
1 2
