XM Part Number Image Spec Sheet Buy Direct
(Intl. add 15%) 		Feature Mfr Type CF 3 dB BW IL 20 dB Rej Low Side 20 dB Rej High Side 40 dB Rej Low Side 40 dB Rej High Side RoHS Request Quote
XM-A265-0604C N/A
0604A
 		N/A B148QF0S
$516.00 N/A DLI N/A Planar N/A 15000 MHz N/A 7950 MHz N/A 1.09 dB N/A 10100 MHz N/A 20110 MHz N/A 8410 MHz N/A 21980 MHz N/A
XR-A265-0604C 		Request Quote
XM-A265-0604D N/A
0079_WEB
 		N/A B148QF0S
$342.00 N/A DLI N/A Planar N/A 15000 MHz N/A 7950 MHz N/A 1.09 dB N/A 10100 MHz N/A 20110 MHz N/A 8410 MHz N/A 21980 MHz N/A
XR-A265-0604D 		Request Quote
XM-A2B3-0404C N/A
0404A
 		N/A B096QC2S
$429.00 N/A DLI N/A Planar N/A 10000 MHz N/A 5440 MHz N/A 1.52 dB N/A 6920 MHz N/A 12920 MHz N/A 6380 MHz N/A 13120 MHz N/A
XR-A2B3-0404C 		Request Quote
XM-A2B3-0404D N/A
0082_WEB
 		N/A B096QC2S
$262.00 N/A DLI N/A Planar N/A 10000 MHz N/A 5440 MHz N/A 1.52 dB N/A 6920 MHz N/A 12920 MHz N/A 6380 MHz N/A 13120 MHz N/A
XR-A2B3-0404D 		Request Quote
XM-A2C2-0604D N/A
0080_WEB
 		N/A B028RF2S
$463.00 N/A DLI N/A Planar N/A 3000 MHz N/A 2336 MHz N/A 1.15 dB N/A 1650 MHz N/A 4390 MHz N/A 1390 MHz N/A 4705 MHz N/A
XR-A2C2-0604D 		Request Quote
XM-A2C3-0604C N/A
0604A
 		N/A B056RC4S
$560.00 N/A DLI N/A Planar N/A 6000 MHz N/A 4700 MHz N/A 1.63 dB N/A 3600 MHz N/A 8580 MHz N/A 3340 MHz N/A 8680 MHz N/A
XR-A2C3-0604C 		Request Quote
XM-A2C3-0604D N/A
0081_WEB
 		N/A B056RC4S
$386.00 N/A DLI N/A Planar N/A 6000 MHz N/A 4700 MHz N/A 1.63 dB N/A 3600 MHz N/A 8580 MHz N/A 3340 MHz N/A 8680 MHz N/A
XR-A2C3-0604D 		Request Quote
XM-A2U1-0604C N/A
0604A
 		N/A B033ND5S
$523.00 N/A DLI N/A Planar N/A 3300 MHz N/A 750 MHz N/A 1.84 dB N/A 2850 MHz N/A 3850 MHz N/A 2500 MHz N/A 3950 MHz N/A
XR-A2U1-0604C 		Request Quote
XM-A2U1-0604D N/A
0168_WEB
 		N/A B033ND5S
$349.00 N/A DLI N/A Planar N/A 3300 MHz N/A 750 MHz N/A 1.84 dB N/A 2850 MHz N/A 3850 MHz N/A 2500 MHz N/A 3950 MHz N/A
XR-A2U1-0604D 		Request Quote
XM-A2Y9-0604C N/A
0604A
 		N/A B012MD5S
$405.00 N/A DLI N/A Planar N/A 1227 MHz N/A 192 MHz N/A 1.99 dB N/A 1075 MHz N/A 1350 MHz N/A 976 MHz N/A 1395 MHz N/A
XR-A2Y9-0604C 		Request Quote
XM-A2Y9-0604D N/A
0173_WEB
 		N/A B012MD5S
$231.00 N/A DLI N/A Planar N/A 1227 MHz N/A 192 MHz N/A 1.99 dB N/A 1075 MHz N/A 1350 MHz N/A 976 MHz N/A 1395 MHz N/A
XR-A2Y9-0604D 		Request Quote
XM-A6H9-0604C N/A
0604A
 		N/A B080MB5S
$469.00 N/A DLI N/A Planar N/A 8000 MHz N/A 1412 MHz N/A 1.79 dB N/A 7182 MHz N/A 8960 MHz N/A 6930 MHz N/A 9180 MHz N/A
XR-A6H9-0604C 		Request Quote
XM-A6H9-0604D N/A
0471_WEB
 		N/A B080MB5S
$295.00 N/A DLI N/A Planar N/A 8000 MHz N/A 1412 MHz N/A 1.79 dB N/A 7182 MHz N/A 8960 MHz N/A 6930 MHz N/A 9180 MHz N/A
XR-A6H9-0604D 		Request Quote
XM-A7L9-0404C N/A
0404A
 		N/A B280LB0S
$399.00 N/A DLI N/A Planar N/A 28000 MHz N/A 2800 MHz N/A 1.37 dB N/A 25900 MHz N/A 29760 MHz N/A 25220 MHz N/A 30600 MHz N/A
XR-A7L9-0404C 		Request Quote
XM-A7L9-0404D N/A
0520_WEB
 		N/A B280LB0S
$201.00 N/A DLI N/A Planar N/A 28000 MHz N/A 2800 MHz N/A 1.37 dB N/A 25900 MHz N/A 29760 MHz N/A 25220 MHz N/A 30600 MHz N/A
XR-A7L9-0404D 		Request Quote
XM-A7W4-0604C N/A
0604E
 		N/A B280LA0S
$482.00 N/A DLI N/A Planar N/A 28000 MHz N/A 2250 MHz N/A 2.18 dB N/A 26420 MHz N/A 29160 MHz N/A 26000 MHz N/A 29500 MHz N/A
XR-A7W4-0604C 		Request Quote
XM-A7W4-0604D N/A
0675_WEB
 		N/A B280LA0S
$276.00 N/A DLI N/A Planar N/A 28000 MHz N/A 2250 MHz N/A 2.18 dB N/A 26420 MHz N/A 29160 MHz N/A 26000 MHz N/A 29500 MHz N/A
XR-A7W4-0604D 		Request Quote
XM-A7W5-0804C N/A
0804A
 		N/A B161LA0S
$554.00 N/A DLI N/A Planar N/A 16000 MHz N/A 1360 MHz N/A 3.4 dB N/A 15060 MHz N/A 16870 MHz N/A 14720 MHz N/A 16970 MHz N/A
XR-A7W5-0804C 		Request Quote
XM-A7W5-0804D N/A
0607_WEB
 		N/A B161LA0S
$372.00 N/A DLI N/A Planar N/A 16000 MHz N/A 1360 MHz N/A 3.4 dB N/A 15060 MHz N/A 16870 MHz N/A 14720 MHz N/A 16970 MHz N/A
XR-A7W5-0804D 		Request Quote
XM-A7W6-0604C N/A
0604A
 		N/A B120MB1S
$479.00 N/A DLI N/A Planar N/A 12000 MHz N/A 1590 MHz N/A 1.69 dB N/A 11010 MHz N/A 12920 MHz N/A 10670 MHz N/A 13090 MHz N/A
XR-A7W6-0604C 		Request Quote
XM-A7W6-0604D N/A
0608_WEB
 		N/A B120MB1S
$305.00 N/A DLI N/A Planar N/A 12000 MHz N/A 1590 MHz N/A 1.69 dB N/A 11010 MHz N/A 12920 MHz N/A 10670 MHz N/A 13090 MHz N/A
XR-A7W6-0604D 		Request Quote
XM-A7W9-0604C N/A
0604A
 		N/A B016MD6S
$400.00 N/A DLI N/A Planar N/A 1575 MHz N/A 231 MHz N/A 1.9 dB N/A 1380 MHz N/A 1730 MHz N/A 1230 MHz N/A 1800 MHz N/A
XR-A7W9-0604C 		Request Quote
XM-A7W9-0604D N/A
0173_WEB
 		N/A B016MD6S
$226.00 N/A DLI N/A Planar N/A 1575 MHz N/A 231 MHz N/A 1.9 dB N/A 1380 MHz N/A 1730 MHz N/A 1230 MHz N/A 1800 MHz N/A
XR-A7W9-0604D 		Request Quote
XM-B6N2-0604C N/A
0604A
 		N/A B060NC5S
$456.00 N/A DLI N/A Planar N/A 6000 MHz N/A 1300 MHz N/A 1.23 dB N/A 6160 MHz N/A 6820 MHz N/A 4900 MHz N/A 7040 MHz N/A
XR-B6N2-0604C 		Request Quote
XM-B6N2-0604D N/A

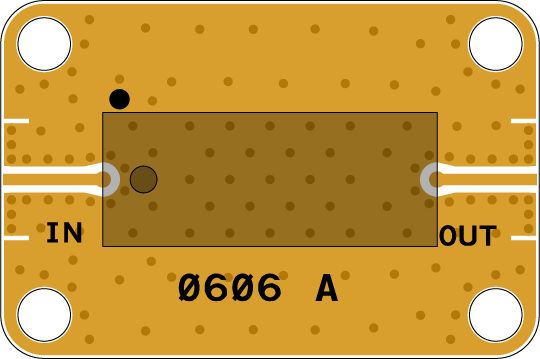

0606_WEB
 		N/A B060NC5S
$282.00 N/A DLI N/A Planar N/A 6000 MHz N/A 1300 MHz N/A 1.23 dB N/A 6160 MHz N/A 6820 MHz N/A 4900 MHz N/A 7040 MHz N/A
XR-B6N2-0604D 		Request Quote
XM-B7D5-0604C N/A
0604A
 		N/A B058MD7S
$476.00 N/A DLI N/A Planar N/A 5700 MHz N/A 1170 MHz N/A 1.2 dB N/A 5020 MHz N/A 6640 MHz N/A 4685 MHz N/A 6950 MHz N/A
XR-B7D5-0604C 		Request Quote
XM-B7D5-0604D N/A

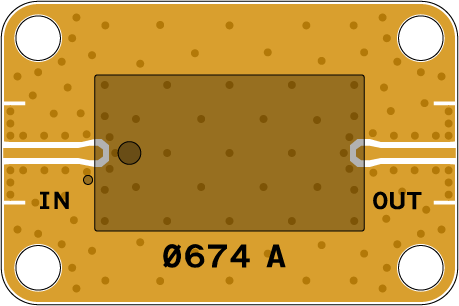

0674_WEB
 		N/A B058MD7S
$302.00 N/A DLI N/A Planar N/A 5700 MHz N/A 1170 MHz N/A 1.2 dB N/A 5020 MHz N/A 6640 MHz N/A 4685 MHz N/A 6950 MHz N/A
XR-B7D5-0604D 		Request Quote
XM-B7L2-0604C N/A
0604A
 		N/A B039NC5S
$465.00 N/A DLI N/A Planar N/A 3950 MHz N/A 950 MHz N/A 1.75 dB N/A 3365 MHz N/A 4600 MHz N/A 3125 MHz N/A 4780 MHz N/A
XR-B7L2-0604C 		Request Quote
XM-B7L2-0604D N/A

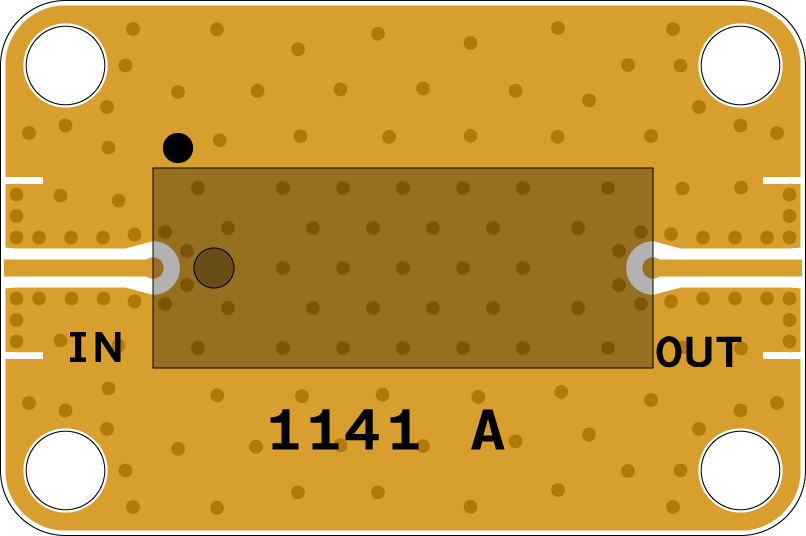

1141_WEB
 		N/A B039NC5S
$291.00 N/A DLI N/A Planar N/A 3950 MHz N/A 950 MHz N/A 1.75 dB N/A 3365 MHz N/A 4600 MHz N/A 3125 MHz N/A 4780 MHz N/A
XR-B7L2-0604D 		Request Quote
XM-B7L3-0604C N/A
0604A
 		N/A B070MB6S
$465.00 N/A DLI N/A Planar N/A 7100 MHz N/A 780 MHz N/A 1.79 dB N/A 6500 MHz N/A 7560 MHz N/A 6300 MHz N/A 6760 MHz N/A
XR-B7L3-0604C 		Request Quote
XM-B7L3-0604D N/A
1141_WEB
 		N/A B070MB6S
$291.00 N/A DLI N/A Planar N/A 7100 MHz N/A 780 MHz N/A 1.79 dB N/A 6500 MHz N/A 7560 MHz N/A 6300 MHz N/A 6760 MHz N/A
XR-B7L3-0604D 		Request Quote
XM-B7L4-0604C N/A
0604A
 		N/A B070NC5S
$505.00 N/A DLI N/A Planar N/A 7000 MHz N/A 1500 MHz N/A 1.08 dB N/A 6150 MHz N/A 8030 MHz N/A 5850 MHz N/A 8290 MHz N/A
XR-B7L4-0604C 		Request Quote
XM-B7L4-0604D N/A
1141_WEB
 		N/A B070NC5S
$331.00 N/A DLI N/A Planar N/A 7000 MHz N/A 1500 MHz N/A 1.08 dB N/A 6150 MHz N/A 8030 MHz N/A 5850 MHz N/A 8290 MHz N/A
XR-B7L4-0604D 		Request Quote
XM-B7L5-0604C N/A
0604A
 		N/A B076MB6S
$451.00 N/A DLI N/A Planar N/A 7600 MHz N/A 940 MHz N/A 1.46 dB N/A 7010 MHz N/A 8290 MHz N/A 6770 MHz N/A 8500 MHz N/A
XR-B7L5-0604C 		Request Quote
XM-B7L5-0604D N/A
1141_WEB
 		N/A B076MB6S
$277.00 N/A DLI N/A Planar N/A 7600 MHz N/A 940 MHz N/A 1.46 dB N/A 7010 MHz N/A 8290 MHz N/A 6770 MHz N/A 8500 MHz N/A
XR-B7L5-0604D 		Request Quote
XM-B7L6-0604C N/A
0604A
 		N/A B024RF2S
$602.00 N/A DLI N/A Planar N/A 2400 MHz N/A 1550 MHz N/A 1.04 dB N/A 1580 MHz N/A 3500 MHz N/A 1275 MHz N/A 3660 MHz N/A
XR-B7L6-0604C 		Request Quote
XM-B7L6-0604D N/A
1142_WEB
 		N/A B024RF2S
$428.00 N/A DLI N/A Planar N/A 2400 MHz N/A 1550 MHz N/A 1.04 dB N/A 1580 MHz N/A 3500 MHz N/A 1275 MHz N/A 3660 MHz N/A
XR-B7L6-0604D 		Request Quote
XM-B7L7-0604C N/A
0604A
 		N/A B031ND5S
$830.00 N/A DLI N/A Planar N/A 3125 MHz N/A 720 MHz N/A 1.4 dB N/A 2640 MHz N/A 3670 MHz N/A 2400 MHz N/A 3850 MHz N/A
XR-B7L7-0604C 		Request Quote
XM-B7L7-0604D N/A
1142_WEB
 		N/A B031ND5S
$656.00 N/A DLI N/A Planar N/A 3125 MHz N/A 720 MHz N/A 1.4 dB N/A 2640 MHz N/A 3670 MHz N/A 2400 MHz N/A 3850 MHz N/A
XR-B7L7-0604D 		Request Quote
XM-B7L8-0604C N/A
0604A
 		N/A B032ND5S
$411.00 N/A DLI N/A Planar N/A 3240 MHz N/A 865 MHz N/A 1.15 dB N/A 2660 MHz N/A 3870 MHz N/A 2400 MHz N/A 4050 MHz N/A
XR-B7L8-0604C 		Request Quote
XM-B7L8-0604D N/A
1142_WEB
 		N/A B032ND5S
$237.00 N/A DLI N/A Planar N/A 3240 MHz N/A 865 MHz N/A 1.15 dB N/A 2660 MHz N/A 3870 MHz N/A 2400 MHz N/A 4050 MHz N/A
XR-B7L8-0604D 		Request Quote
XM-B7L9-0604C N/A
0604A
 		N/A B040MB5S
$465.00 N/A DLI N/A Planar N/A 4000 MHz N/A 950 MHz N/A 1.78 dB N/A 3700 MHz N/A 3610 MHz N/A 3120 MHz N/A 4775 MHz N/A
XR-B7L9-0604C 		Request Quote
XM-B7L9-0604D N/A
1142_WEB
 		N/A B040MB5S
$291.00 N/A DLI N/A Planar N/A 4000 MHz N/A 950 MHz N/A 1.78 dB N/A 3700 MHz N/A 3610 MHz N/A 3120 MHz N/A 4775 MHz N/A
XR-B7L9-0604D 		Request Quote
XM-B7M1-0604C N/A
0604A
 		N/A B042OD4S
$488.00 N/A DLI N/A Planar N/A 4250 MHz N/A 1480 MHz N/A 0.89 dB N/A 3430 MHz N/A 5250 MHz N/A 3130 MHz N/A 5465 MHz N/A
XR-B7M1-0604C 		Request Quote
XM-B7M1-0604D N/A
1142_WEB
 		N/A B042OD4S
$314.00 N/A DLI N/A Planar N/A 4250 MHz N/A 1480 MHz N/A 0.89 dB N/A 3430 MHz N/A 5250 MHz N/A 3130 MHz N/A 5465 MHz N/A
XR-B7M1-0604D 		Request Quote
XM-B7M2-0604C N/A
0604A
 		N/A B047MC5S
$527.00 N/A DLI N/A Planar N/A 4700 MHz N/A 975 MHz N/A 1.11 dB N/A 4130 MHz N/A 5375 MHz N/A 3895 MHz N/A 5550 MHz N/A
XR-B7M2-0604C 		Request Quote
XM-B7M2-0604D N/A
1142_WEB
 		N/A B047MC5S
$353.00 N/A DLI N/A Planar N/A 4700 MHz N/A 975 MHz N/A 1.11 dB N/A 4130 MHz N/A 5375 MHz N/A 3895 MHz N/A 5550 MHz N/A
XR-B7M2-0604D 		Request Quote
XM-B7M3-0604C N/A
0604A
 		N/A B062MC5S
$487.00 N/A DLI N/A Planar N/A 6300 MHz N/A 1275 MHz N/A 1.53 dB N/A 5520 MHz N/A 7240 MHz N/A 5200 MHz N/A 7470 MHz N/A
XR-B7M3-0604C 		Request Quote
XM-B7M3-0604D N/A
1142_WEB
 		N/A B062MC5S
$313.00 N/A DLI N/A Planar N/A 6300 MHz N/A 1275 MHz N/A 1.53 dB N/A 5520 MHz N/A 7240 MHz N/A 5200 MHz N/A 7470 MHz N/A
XR-B7M3-0604D 		Request Quote
XM-B7M4-0604C N/A
0604A
 		N/A B065NC5S
$476.00 N/A DLI N/A Planar N/A 6500 MHz N/A 1440 MHz N/A 1.15 dB N/A 5600 MHz N/A 7480 MHz N/A 5230 MHz N/A 7740 MHz N/A
XR-B7M4-0604C 		Request Quote
XM-B7M4-0604D N/A
1142_WEB
 		N/A B065NC5S
$302.00 N/A DLI N/A Planar N/A 6500 MHz N/A 1440 MHz N/A 1.15 dB N/A 5600 MHz N/A 7480 MHz N/A 5230 MHz N/A 7740 MHz N/A
XR-B7M4-0604D 		Request Quote
XM-B7M5-0404C N/A
0404A
 		N/A B050ND4S
$428.00 N/A DLI N/A Planar N/A 5000 MHz N/A 1430 MHz N/A 1.1 dB N/A 4100 MHz N/A 5930 MHz N/A 3750 MHz N/A 6100 MHz N/A
XR-B7M5-0404C 		Request Quote
XM-B7M5-0404D N/A

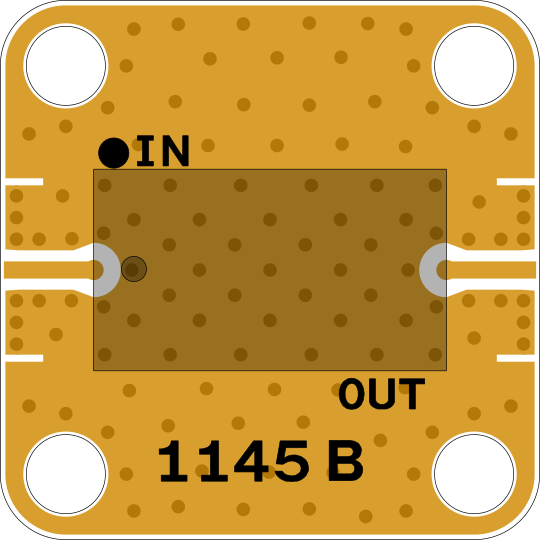

1145_WEB
 		N/A B050ND4S
$262.00 N/A DLI N/A Planar N/A 5000 MHz N/A 1430 MHz N/A 1.1 dB N/A 4100 MHz N/A 5930 MHz N/A 3750 MHz N/A 6100 MHz N/A
XR-B7M5-0404D 		Request Quote
XM-B7M6-0404C N/A
0404A
 		N/A B052NC5S
$440.00 N/A DLI N/A Planar N/A 5200 MHz N/A 1200 MHz N/A 1.1 dB N/A 4450 MHz N/A 6000 MHz N/A 4130 MHz N/A 6160 MHz N/A
XR-B7M6-0404C 		Request Quote
XM-B7M6-0404D N/A
1145_WEB
 		N/A B052NC5S
QUOTE N/A DLI N/A Planar N/A 5200 MHz N/A 1200 MHz N/A 1.1 dB N/A 4450 MHz N/A 6000 MHz N/A 4130 MHz N/A 6160 MHz N/A
XR-B7M6-0404D 		Request Quote
XM-B7M7-0404C N/A
0404A
 		N/A B055NC5S
$452.00 N/A DLI N/A Planar N/A 5500 MHz N/A 1450 MHz N/A 0.97 dB N/A 4640 MHz N/A 6485 MHz N/A 4260 MHz N/A 6685 MHz N/A
XR-B7M7-0404C 		Request Quote
XM-B7M7-0404D N/A
1145_WEB
 		N/A B055NC5S
$285.00 N/A DLI N/A Planar N/A 5500 MHz N/A 1450 MHz N/A 0.97 dB N/A 4640 MHz N/A 6485 MHz N/A 4260 MHz N/A 6685 MHz N/A
XR-B7M7-0404D 		Request Quote
XM-B7M8-0404C N/A
0404A
 		N/A B057MC5S
$440.00 N/A DLI N/A Planar N/A 5700 MHz N/A 870 MHz N/A 1.53 dB N/A 5100 MHz N/A 6300 MHz N/A 4830 MHz N/A 6510 MHz N/A
XR-B7M8-0404C 		Request Quote
XM-B7M8-0404D N/A
1145_WEB
 		N/A B057MC5S
$274.00 N/A DLI N/A Planar N/A 5700 MHz N/A 870 MHz N/A 1.53 dB N/A 5100 MHz N/A 6300 MHz N/A 4830 MHz N/A 6510 MHz N/A
XR-B7M8-0404D 		Request Quote
XM-B7N2-0604C N/A
0604A
 		N/A B274MB1S
$339.00 N/A DLI N/A Planar N/A 28000 MHz N/A 4130 MHz N/A 1.97 dB N/A 25370 MHz N/A 30150 MHz N/A 24860 MHz N/A 30460 MHz N/A
XR-B7N2-0604C 		Request Quote
XM-B7N2-0604D N/A

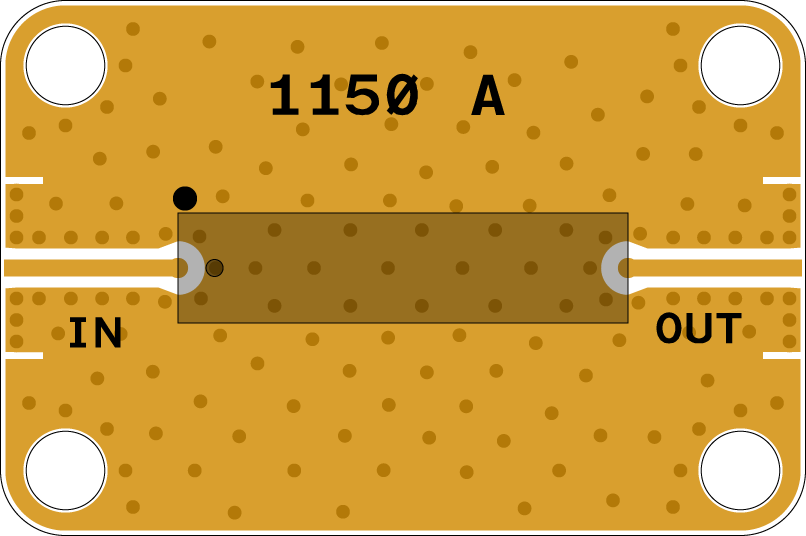

1150_WEB
 		N/A B274MB1S
$133.00 N/A DLI N/A Planar N/A 28000 MHz N/A 4130 MHz N/A 1.97 dB N/A 25370 MHz N/A 30150 MHz N/A 24860 MHz N/A 30460 MHz N/A
XR-B7N2-0604D 		Request Quote
XM-B7N3-0404C N/A
0404A
 		N/A B385MD0S
$360.00 N/A DLI N/A Planar N/A 38500 MHz N/A 4950 MHz N/A 1.13 dB N/A 36000 MHz N/A 43060 MHz N/A 35190 MHz N/A 45840 MHz N/A
XR-B7N3-0404C 		Request Quote
XM-B7N3-0404D N/A

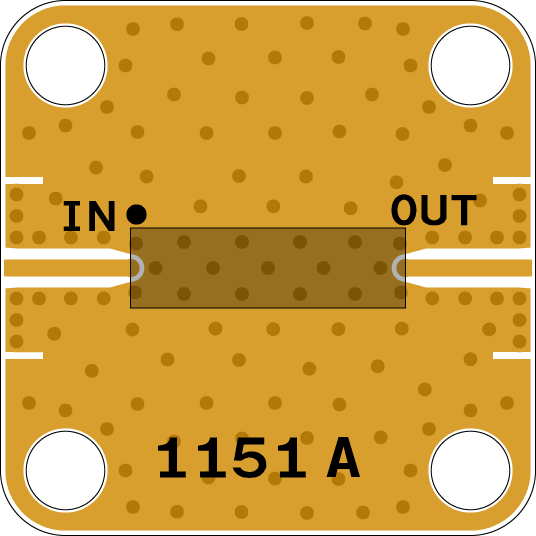

1151_WEB
 		N/A B385MD0S
$162.00 N/A DLI N/A Planar N/A 38500 MHz N/A 4950 MHz N/A 1.13 dB N/A 36000 MHz N/A 43060 MHz N/A 35190 MHz N/A 45840 MHz N/A
XR-B7N3-0404D 		Request Quote
XM-B7N4-0404C N/A
0404A
 		N/A B081RC0S
$397.00 N/A DLI N/A Planar N/A 8500 MHz N/A 5700 MHz N/A 1.29 dB N/A 5580 MHz N/A 11870 MHz N/A 5240 MHz N/A 12020 MHz N/A
XR-B7N4-0404C 		Request Quote
XM-B7N4-0404D N/A

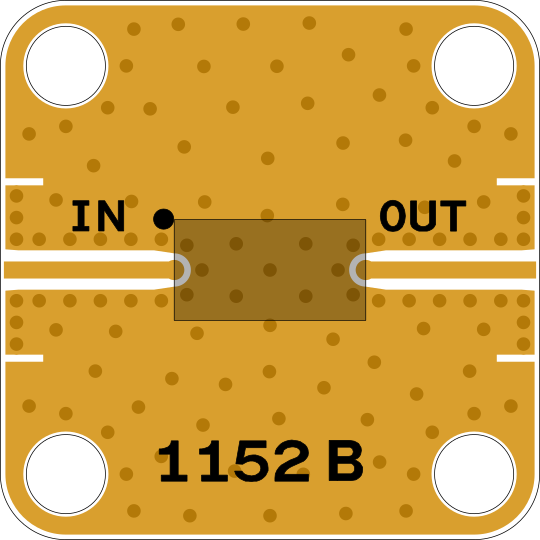

1152_WEB
 		N/A B081RC0S
$231.00 N/A DLI N/A Planar N/A 8500 MHz N/A 5700 MHz N/A 1.29 dB N/A 5580 MHz N/A 11870 MHz N/A 5240 MHz N/A 12020 MHz N/A
XR-B7N4-0404D 		Request Quote
XM-C376-0404C N/A
0404A
 		N/A B259MC1S
QUOTE N/A DLI N/A Planar N/A 26000 MHz N/A 3690 MHz N/A 1.62 dB N/A 23090 MHz N/A 28030 MHz N/A 21090 MHz N/A 28640 MHz N/A
XR-C376-0404C 		Request Quote
XM-C376-0404D N/A

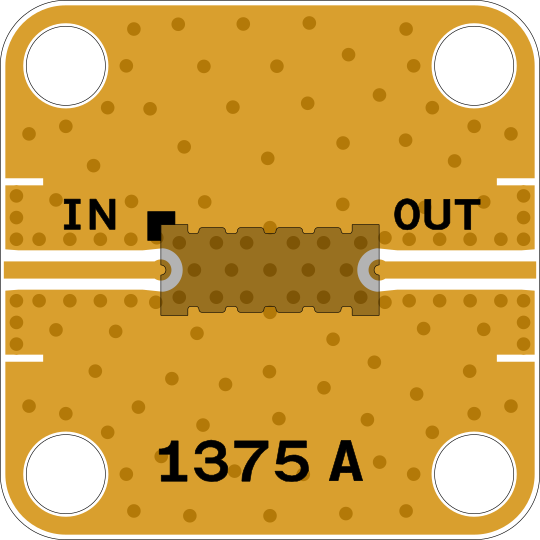

1375_WEB
 		N/A B259MC1S
QUOTE N/A DLI N/A Planar N/A 26000 MHz N/A 3690 MHz N/A 1.62 dB N/A 23090 MHz N/A 28030 MHz N/A 21090 MHz N/A 28640 MHz N/A
XR-C376-0404D 		Request Quote
XM-C452-0404C N/A
0404A
 		N/A B100MC5S
$386.00 N/A DLI N/A Planar N/A 10000 MHz N/A 1840 MHz N/A 1.3 dB N/A 8935 MHz N/A 11350 MHz N/A 8540 MHz N/A 11730 MHz N/A
XR-C452-0404C 		Request Quote
XM-C452-0404D N/A

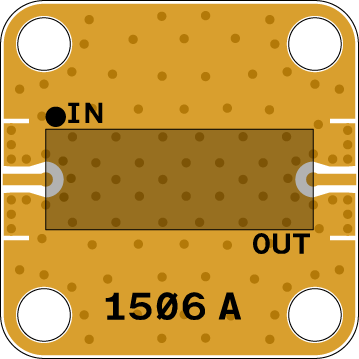

1506_WEB
 		N/A B100MC5S
$219.00 N/A DLI N/A Planar N/A 10000 MHz N/A 1840 MHz N/A 1.3 dB N/A 8935 MHz N/A 11350 MHz N/A 8540 MHz N/A 11730 MHz N/A
XR-C452-0404D 		Request Quote
XM-C5N2-0404C N/A
0404A
 		N/A B144MB1S
$396.00 N/A DLI N/A Planar N/A 14500 MHz N/A 2050 MHz N/A 1.51 dB N/A 13020 MHz N/A 15540 MHz N/A 12440 MHz N/A 15790 MHz N/A
XR-C5N2-0404C 		Request Quote
XM-C5N2-0404D N/A

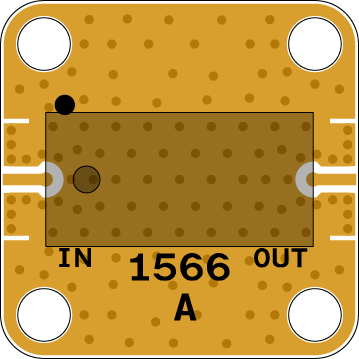

1566_WEB
 		N/A B144MB1S
$230.00 N/A DLI N/A Planar N/A 14500 MHz N/A 2050 MHz N/A 1.51 dB N/A 13020 MHz N/A 15540 MHz N/A 12440 MHz N/A 15790 MHz N/A
XR-C5N2-0404D 		Request Quote
XM-C712-0604D N/A

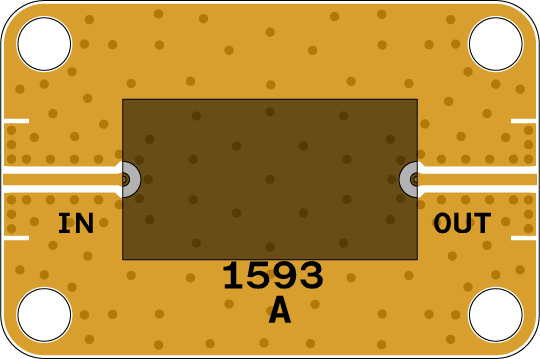

1593_WEB
 		N/A B056MB5S
$357.00 N/A DLI N/A Planar N/A 5600 MHz N/A 1050 MHz N/A 1.32 dB N/A 5020 MHz N/A 6280 MHz N/A 4800 MHz N/A 6425 MHz N/A
XR-C712-0604D 		Request Quote
XM-C713-0604C N/A
0604A
 		N/A B083LB6S
$450.00 N/A DLI N/A Planar N/A 8250 MHz N/A 1200 MHz N/A 1.46 dB N/A 7630 MHz N/A 9200 MHz N/A 7330 MHz N/A 9500 MHz N/A
XR-C713-0604C 		Request Quote
XM-C713-0604D N/A

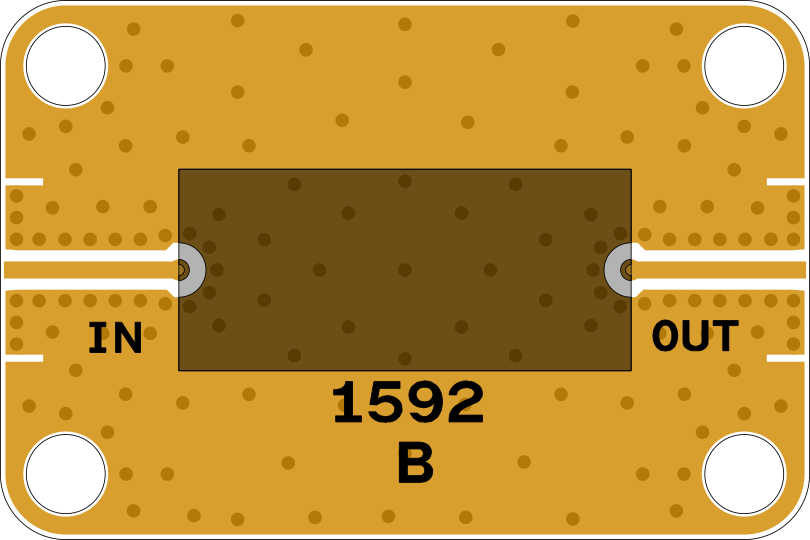

1592_WEB
 		N/A B083LB6S
$276.00 N/A DLI N/A Planar N/A 8250 MHz N/A 1200 MHz N/A 1.46 dB N/A 7630 MHz N/A 9200 MHz N/A 7330 MHz N/A 9500 MHz N/A
XR-C713-0604D 		Request Quote
XM-C714-0404C N/A
0404A
 		N/A B089NC4S
$489.00 N/A DLI N/A Planar N/A 9100 MHz N/A 2430 MHz N/A 1.24 dB N/A 7525 MHz N/A 10530 MHz N/A 7040 MHz N/A 11000 MHz N/A
XR-C714-0404C 		Request Quote
XM-C714-0404D N/A
1590_WEB
 		N/A B089NC4S
$323.00 N/A DLI N/A Planar N/A 9100 MHz N/A 2430 MHz N/A 1.24 dB N/A 7525 MHz N/A 10530 MHz N/A 7040 MHz N/A 11000 MHz N/A
XR-C714-0404D 		Request Quote
XM-C715-0604C N/A
0604A
 		N/A B094LA2S
$491.00 N/A DLI N/A Planar N/A 9420 MHz N/A 830 MHz N/A 2.23 dB N/A 8980 MHz N/A 10020 MHz N/A 8800 MHz N/A 10150 MHz N/A
XR-C715-0604C 		Request Quote
XM-C715-0604D N/A
1592_WEB
 		N/A B094LA2S
$317.00 N/A DLI N/A Planar N/A 9420 MHz N/A 830 MHz N/A 2.23 dB N/A 8980 MHz N/A 10020 MHz N/A 8800 MHz N/A 10150 MHz N/A
XR-C715-0604D 		Request Quote
XM-C716-0404C N/A
0404A
 		N/A B095MB1S
$503.00 N/A DLI N/A Planar N/A 9500 MHz N/A 1770 MHz N/A 1.18 dB N/A 8500 MHz N/A 10700 MHz N/A 8130 MHz N/A 11080 MHz N/A
XR-C716-0404C 		Request Quote
XM-C716-0404D N/A
1590_WEB
 		N/A B095MB1S
$337.00 N/A DLI N/A Planar N/A 9500 MHz N/A 1770 MHz N/A 1.18 dB N/A 8500 MHz N/A 10700 MHz N/A 8130 MHz N/A 11080 MHz N/A
XR-C716-0404D 		Request Quote
XM-C717-0404C N/A
0404A
 		N/A B097MB0S
$402.00 N/A DLI N/A Planar N/A 9700 MHz N/A 1615 MHz N/A 1.5 dB N/A 8840 MHz N/A 11000 MHz N/A 8460 MHz N/A 11330 MHz N/A
XR-C717-0404C 		Request Quote
XM-C717-0404D N/A
1590_WEB
 		N/A B097MB0S
$236.00 N/A DLI N/A Planar N/A 9700 MHz N/A 1615 MHz N/A 1.5 dB N/A 8840 MHz N/A 11000 MHz N/A 8460 MHz N/A 11330 MHz N/A
XR-C717-0404D 		Request Quote
XM-C718-0604C N/A
0604A
 		N/A B102MC1S
$424.00 N/A DLI N/A Planar N/A 10250 MHz N/A 1180 MHz N/A 2.25 dB N/A 7620 MHz N/A 9200 MHz N/A 7325 MHz N/A 9490 MHz N/A
XR-C718-0604C 		Request Quote
XM-C718-0604D N/A
1592_WEB
 		N/A B102MC1S
$250.00 N/A DLI N/A Planar N/A 10250 MHz N/A 1180 MHz N/A 2.25 dB N/A 7620 MHz N/A 9200 MHz N/A 7325 MHz N/A 9490 MHz N/A
XR-C718-0604D 		Request Quote
XM-C719-0404C N/A
0404A
 		N/A B099NC4S
$387.00 N/A DLI N/A Planar N/A 10250 MHz N/A 3090 MHz N/A 1.11 dB N/A 8360 MHz N/A 12220 MHz N/A 7590 MHz N/A 12890 MHz N/A
XR-C719-0404C 		Request Quote
XM-C719-0404D N/A
1590_WEB
 		N/A B099NC4S
$221.00 N/A DLI N/A Planar N/A 10250 MHz N/A 3090 MHz N/A 1.11 dB N/A 8360 MHz N/A 12220 MHz N/A 7590 MHz N/A 12890 MHz N/A
XR-C719-0404D 		Request Quote
XM-C721-0604C N/A
0604A
 		N/A B105MB5S
$391.00 N/A DLI N/A Planar N/A 10600 MHz N/A 2250 MHz N/A 1.24 dB N/A 9200 MHz N/A 12350 MHz N/A 8680 MHz N/A 12970 MHz N/A
XR-C721-0604C 		Request Quote
XM-C721-0604D N/A
1592_WEB
 		N/A B105MB5S
$217.00 N/A DLI N/A Planar N/A 10600 MHz N/A 2250 MHz N/A 1.24 dB N/A 9200 MHz N/A 12350 MHz N/A 8680 MHz N/A 12970 MHz N/A
XR-C721-0604D 		Request Quote
XM-C722-0404C N/A
0404A
 		N/A B112MB1S
$445.00 N/A DLI N/A Planar N/A 11200 MHz N/A 1900 MHz N/A 1.35 dB N/A 10280 MHz N/A 12810 MHz N/A 9850 MHz N/A 13220 MHz N/A
XR-C722-0404C 		Request Quote
XM-C722-0404D N/A
1590_WEB
 		N/A B112MB1S
$279.00 N/A DLI N/A Planar N/A 11200 MHz N/A 1900 MHz N/A 1.35 dB N/A 10280 MHz N/A 12810 MHz N/A 9850 MHz N/A 13220 MHz N/A
XR-C722-0404D 		Request Quote
XM-C723-0404C N/A
0404A
 		N/A B111NC4S
$397.00 N/A DLI N/A Planar N/A 11400 MHz N/A 3190 MHz N/A 1.18 dB N/A 9540 MHz N/A 13500 MHz N/A 8935 MHz N/A 14190 MHz N/A
XR-C723-0404C 		Request Quote
XM-C723-0404D N/A
1590_WEB
 		N/A B111NC4S
$231.00 N/A DLI N/A Planar N/A 11400 MHz N/A 3190 MHz N/A 1.18 dB N/A 9540 MHz N/A 13500 MHz N/A 8935 MHz N/A 14190 MHz N/A
XR-C723-0404D 		Request Quote
XM-C724-0404C N/A
0404A
 		N/A B116NC5S
$397.00 N/A DLI N/A Planar N/A 11650 MHz N/A 3300 MHz N/A 1.03 dB N/A 9710 MHz N/A 13810 MHz N/A 9100 MHz N/A 14540 MHz N/A
XR-C724-0404C 		Request Quote
XM-C724-0404D N/A
1590_WEB
 		N/A B116NC5S
$231.00 N/A DLI N/A Planar N/A 11650 MHz N/A 3300 MHz N/A 1.03 dB N/A 9710 MHz N/A 13810 MHz N/A 9100 MHz N/A 14540 MHz N/A
XR-C724-0404D 		Request Quote
XM-C725-0604D N/A
1592_WEB
 		N/A B118LB4S
$225.00 N/A DLI N/A Planar N/A 11800 MHz N/A 1180 MHz N/A 1.35 dB N/A 11080 MHz N/A 12770 MHz N/A 10670 MHz N/A 13030 MHz N/A
XR-C725-0604D 		Request Quote
XM-C726-0404C N/A
0404A
 		N/A B127MB2S
$396.00 N/A DLI N/A Planar N/A 12750 MHz N/A 1880 MHz N/A 1.64 dB N/A 11430 MHz N/A 13720 MHz N/A 10950 MHz N/A 13910 MHz N/A
XR-C726-0404C 		Request Quote
XM-C726-0404D N/A
1566_WEB
 		N/A B127MB2S
$230.00 N/A DLI N/A Planar N/A 12750 MHz N/A 1880 MHz N/A 1.64 dB N/A 11430 MHz N/A 13720 MHz N/A 10950 MHz N/A 13910 MHz N/A
XR-C726-0404D 		Request Quote
XM-C727-0404C N/A
0404A
 		N/A B138MB1S
QUOTE N/A DLI N/A Planar N/A 13750 MHz N/A 1875 MHz N/A 1.59 dB N/A 12370 MHz N/A 14700 MHz N/A 11860 MHz N/A 14920 MHz N/A
XR-C727-0404C 		Request Quote
XM-C727-0404D N/A
1566_WEB
 		N/A B138MB1S
QUOTE N/A DLI N/A Planar N/A 13750 MHz N/A 1875 MHz N/A 1.59 dB N/A 12370 MHz N/A 14700 MHz N/A 11860 MHz N/A 14920 MHz N/A
XR-C727-0404D 		Request Quote
XM-C728-0604C N/A
0604A
 		N/A B138LA2S
$414.00 N/A DLI N/A Planar N/A 13750 MHz N/A 1100 MHz N/A 2.1 dB N/A 13110 MHz N/A 14480 MHz N/A 12840 MHz N/A 14660 MHz N/A
XR-C728-0604C 		Request Quote
XM-C728-0604D N/A

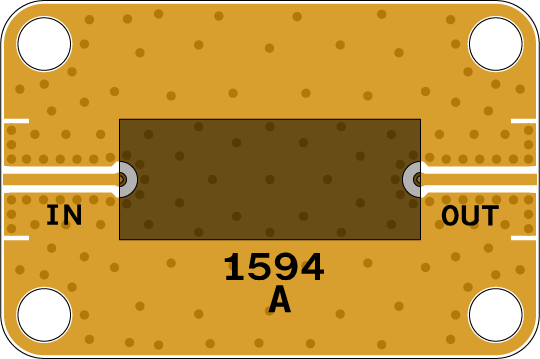

1594_WEB
 		N/A B138LA2S
$240.00 N/A DLI N/A Planar N/A 13750 MHz N/A 1100 MHz N/A 2.1 dB N/A 13110 MHz N/A 14480 MHz N/A 12840 MHz N/A 14660 MHz N/A
XR-C728-0604D 		Request Quote
XM-C729-0404C N/A
0404A
 		N/A B150OG0S
$347.00 N/A DLI N/A Planar N/A 14500 MHz N/A 3380 MHz N/A 0.89 dB N/A 12500 MHz N/A 16970 MHz N/A 11080 MHz N/A 18410 MHz N/A
XR-C729-0404C 		Request Quote
XM-C729-0404D N/A

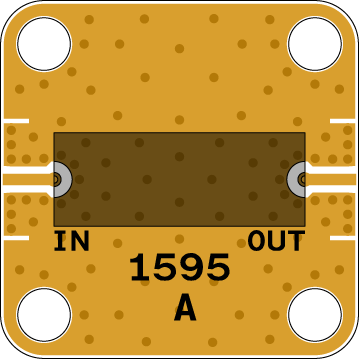

1595_WEB
 		N/A B150OG0S
$181.00 N/A DLI N/A Planar N/A 14500 MHz N/A 3380 MHz N/A 0.89 dB N/A 12500 MHz N/A 16970 MHz N/A 11080 MHz N/A 18410 MHz N/A
XR-C729-0404D 		Request Quote
XM-C731-0604C N/A
0604A
 		N/A B148LA2S
$446.00 N/A DLI N/A Planar N/A 14750 MHz N/A 1330 MHz N/A 2.38 dB N/A 13640 MHz N/A 15330 MHz N/A 13280 MHz N/A 15520 MHz N/A
XR-C731-0604C 		Request Quote
XM-C731-0604D N/A
1592_WEB
 		N/A B148LA2S
$272.00 N/A DLI N/A Planar N/A 14750 MHz N/A 1330 MHz N/A 2.38 dB N/A 13640 MHz N/A 15330 MHz N/A 13280 MHz N/A 15520 MHz N/A
XR-C731-0604D 		Request Quote
XM-C732-0404C N/A
0404A
 		N/A B149MC1S
$385.00 N/A DLI N/A Planar N/A 15000 MHz N/A 1330 MHz N/A 3.1 dB N/A 13630 MHz N/A 15330 MHz N/A 13280 MHz N/A 15520 MHz N/A
XR-C732-0404C 		Request Quote
XM-C732-0404D N/A

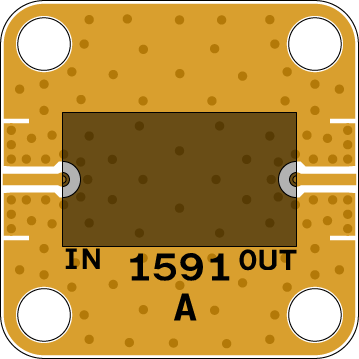

1591_WEB
 		N/A B149MC1S
$219.00 N/A DLI N/A Planar N/A 15000 MHz N/A 1330 MHz N/A 3.1 dB N/A 13630 MHz N/A 15330 MHz N/A 13280 MHz N/A 15520 MHz N/A
XR-C732-0404D 		Request Quote
XM-C733-0404C N/A
0404A
 		N/A B160KA1S
$402.00 N/A DLI N/A Planar N/A 16000 MHz N/A 1500 MHz N/A 1.76 dB N/A 15030 MHz N/A 16960 MHz N/A 14500 MHz N/A 17580 MHz N/A
XR-C733-0404C 		Request Quote
XM-C733-0404D N/A
1566_WEB
 		N/A B160KA1S
$236.00 N/A DLI N/A Planar N/A 16000 MHz N/A 1500 MHz N/A 1.76 dB N/A 15030 MHz N/A 16960 MHz N/A 14500 MHz N/A 17580 MHz N/A
XR-C733-0404D 		Request Quote
XM-C734-0404C N/A
0404A
 		N/A B165LA1S
$379.00 N/A DLI N/A Planar N/A 16500 MHz N/A 1940 MHz N/A 1.76 dB N/A 15080 MHz N/A 17500 MHz N/A 14540 MHz N/A 17780 MHz N/A
XR-C734-0404C 		Request Quote
XM-C734-0404D N/A
1566_WEB
 		N/A B165LA1S
$212.00 N/A DLI N/A Planar N/A 16500 MHz N/A 1940 MHz N/A 1.76 dB N/A 15080 MHz N/A 17500 MHz N/A 14540 MHz N/A 17780 MHz N/A
XR-C734-0404D 		Request Quote
XM-C735-0404C N/A
0404A
 		N/A B168MB1S
$364.00 N/A DLI N/A Planar N/A 16750 MHz N/A 3030 MHz N/A 0.95 dB N/A 14520 MHz N/A 18360 MHz N/A 13530 MHz N/A 18660 MHz N/A
XR-C735-0404C 		Request Quote
XM-C735-0404D N/A
1591_WEB
 		N/A B168MB1S
$198.00 N/A DLI N/A Planar N/A 16750 MHz N/A 3030 MHz N/A 0.95 dB N/A 14520 MHz N/A 18360 MHz N/A 13530 MHz N/A 18660 MHz N/A
XR-C735-0404D 		Request Quote
XM-C737-0404C N/A
0404A
 		N/A B279KB1S
QUOTE N/A DLI N/A Planar N/A 27900 MHz N/A 1620 MHz N/A 2.95 dB N/A 26870 MHz N/A 29160 MHz N/A 26000 MHz N/A 29650 MHz N/A
XR-C737-0404C 		Request Quote
XM-C737-0404D N/A

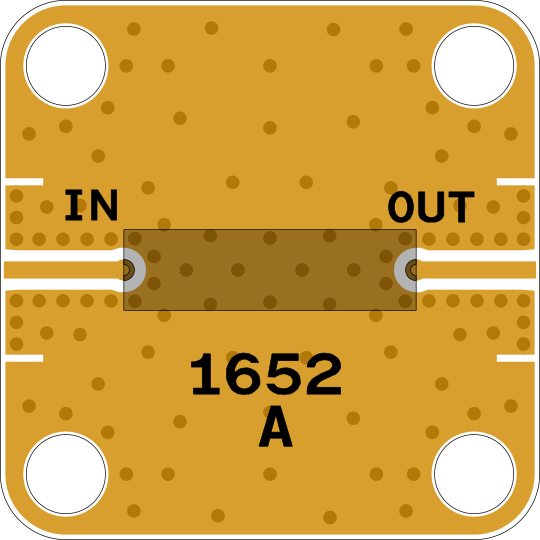

1652_WEB
 		N/A B279KB1S
QUOTE N/A DLI N/A Planar N/A 27900 MHz N/A 1620 MHz N/A 2.95 dB N/A 26870 MHz N/A 29160 MHz N/A 26000 MHz N/A 29650 MHz N/A
XR-C737-0404D 		Request Quote
XM-C738-0404C N/A
0404A
 		N/A B280MC1S
$405.00 N/A DLI N/A Planar N/A 28000 MHz N/A 3500 MHz N/A 1.89 dB N/A 25800 MHz N/A 30380 MHz N/A 24440 MHz N/A 31140 MHz N/A
XR-C738-0404C 		Request Quote
XM-C738-0404D N/A

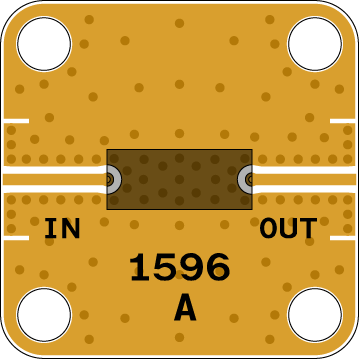

1596_WEB
 		N/A B280MC1S
$207.00 N/A DLI N/A Planar N/A 28000 MHz N/A 3500 MHz N/A 1.89 dB N/A 25800 MHz N/A 30380 MHz N/A 24440 MHz N/A 31140 MHz N/A
XR-C738-0404D 		Request Quote
XM-D269-0604D N/A

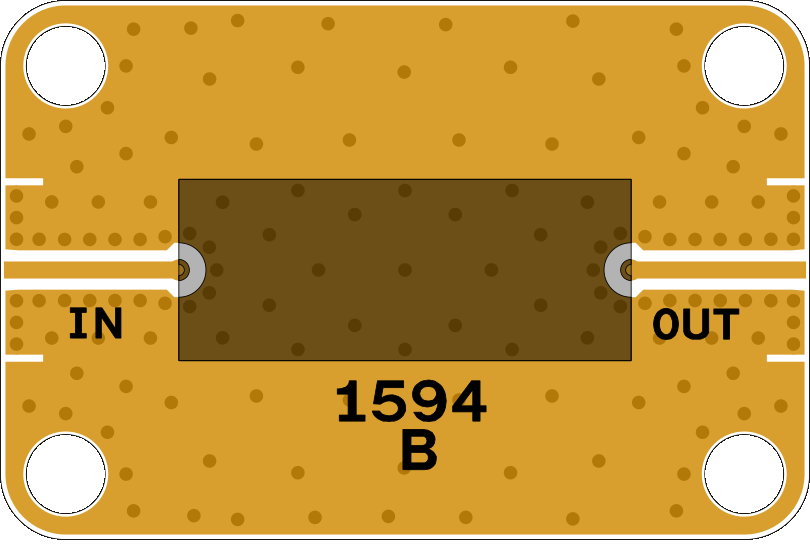

1594
 		N/A B180MA1S
$272.00 N/A DLI N/A Ceramic N/A 18000 MHz N/A 1000 MHz N/A 3.0 dB N/A N/A N/A N/A N/A
XR-D269-0604D 		Request Quote
XM-C1A7-0604D N/A
1970
 		N/A B220LA0S
$291.00 N/A DLI N/A N/A 22000 MHz N/A N/A 3.5 dB N/A N/A N/A N/A N/A
XR-C1A7-0604D 		Request Quote
XM-A484-0604D N/A
1970
 		N/A B291MB0S
$251.00 N/A DLI N/A Ceramic N/A 29100 MHz N/A 3800 MHz N/A 3.0 dB N/A N/A N/A N/A N/A
XR-A484-0604D 		Request Quote
XM-D269-0604C N/A
 		N/A B180MA1S
$446.00 N/A DLI N/A Ceramic N/A 18000 MHz N/A 1000 MHz N/A 3.0 dB N/A N/A N/A N/A N/A
XR-D269-0604C 		Request Quote
