XM-C726-0404D
XR-C726-0404D RoHS

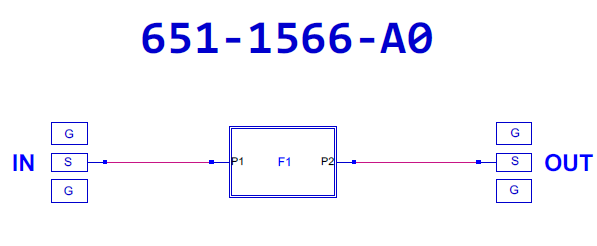

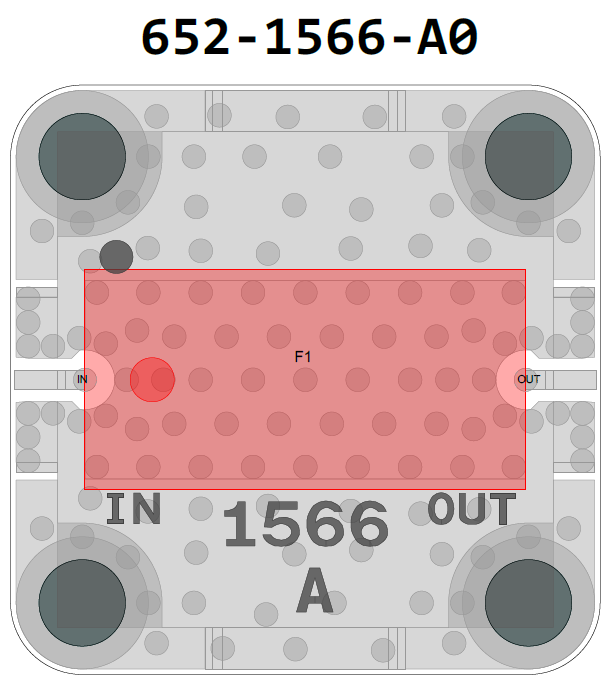

Band Pass Filter, B127MB2S [PCB: 1566]
CF=12.75G BW=1880 20dBRejat11430&13720MHz

Configurations

Unit of Measure

Product Page

 N/A DLI

Spec Sheet

 N/A B127MB2S

CF

 N/A 12750 MHz

3 dB BW

 N/A 1880 MHz

IL

 N/A 1.64 dB

20 dB Rej Low Side

 N/A 11430 MHz

20 dB Rej High Side

 N/A 13720 MHz

40 dB Rej Low Side

 N/A 10950 MHz

40 dB Rej High Side

 N/A 13910 MHz

RoHS

 N/A XR-C726-0404D
