XM Part Number Image Spec Sheet Buy Direct
(Intl. add 15%) 		Feature Mfr Type Low Freq High Freq IL P1dB IP3 RoHS Request Quote
XM-A335-0404C-01 N/A
0404B
 		N/A PE42524
$674.00 N/A pSemi N/A SP2T N/A 10 MHz N/A 27000 MHz N/A 2.5 dB N/A 31.5 dBm N/A 41.5 dBm N/A
XR-A335-0404C-01 		Request Quote
XM-A335-0404C-02 N/A
0404B
 		N/A PE42524
$674.00 N/A pSemi N/A SP2T N/A 10 MHz N/A 40000 MHz N/A 2.5 dB N/A 31.5 dBm N/A 41.5 dBm N/A
XR-A335-0404C-02 		Request Quote
XM-A335-0404D N/A
0211_WEB
 		N/A PE42524
$217.00 N/A pSemi N/A SP2T N/A 10 MHz N/A 40000 MHz N/A 2.5 dB N/A 31.5 dBm N/A 41.5 dBm N/A
XR-A335-0404D 		Request Quote
XM-A3B2-0409C-01 N/A
0409A
 		N/A PE42520
$659.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 13000 MHz N/A 2 dB N/A 39 dBm N/A 66 dBm N/A
XR-A3B2-0409C-01 		Request Quote
XM-A3B2-0409D N/A
0298_WEB
 		N/A PE42520
$184.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 13000 MHz N/A 2 dB N/A 39 dBm N/A 66 dBm N/A
XR-A3B2-0409D 		Request Quote
XM-A3B3-0409C-01 N/A
0409A
 		N/A PE42522
QUOTE N/A pSemi N/A SP2T N/A 0.009 MHz N/A 26500 MHz N/A 5.3 dB N/A N/A 59 dBm N/A
XR-A3B3-0409C-01 		Request Quote
XM-A3B3-0409D N/A
0255_WEB
 		N/A PE42522
$166.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 26500 MHz N/A 5.3 dB N/A N/A 59 dBm N/A
XR-A3B3-0409D 		Request Quote
XM-A3N2-0409C-01 N/A
0409A
 		N/A PE42820
QUOTE N/A pSemi N/A SP2T N/A 30 MHz N/A 2700 MHz N/A 0.8 dB N/A N/A 85 dBm N/A
XR-A3N2-0409C-01 		Request Quote
XM-A3N2-0409D N/A
0300_WEB
 		N/A PE42820
$243.00 N/A pSemi N/A SP2T N/A 30 MHz N/A 2700 MHz N/A 0.8 dB N/A N/A 85 dBm N/A
XR-A3N2-0409D 		Request Quote
XM-A3N3-0409D N/A
0300_WEB
 		N/A PE42722
$351.00 N/A pSemi N/A SP2T N/A 5 MHz N/A 2794 MHz N/A 0.8 dB N/A N/A 84 dBm N/A
XR-A3N3-0409D 		Request Quote
XM-A3N5-0409C-01 N/A
0409A
 		N/A PE42521
$661.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 13000 MHz N/A 2 dB N/A N/A 65 dBm N/A
XR-A3N5-0409C-01 		Request Quote
XM-A3N5-0409D N/A
0298_WEB
 		N/A PE42521
$186.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 13000 MHz N/A 2 dB N/A N/A 65 dBm N/A
XR-A3N5-0409D 		Request Quote
XM-A3N6-0819C-01 N/A
0819A
 		N/A PE42542
QUOTE N/A pSemi N/A SP4T N/A 0.009 MHz N/A 13000 MHz N/A 3.1 dB N/A N/A 58 dBm N/A
XR-A3N6-0819C-01 		Request Quote
XM-A3N6-0819D N/A
0297_WEB
 		N/A PE42542
$425.00 N/A pSemi N/A SP4T N/A 0.009 MHz N/A 13000 MHz N/A 3.1 dB N/A N/A 58 dBm N/A
XR-A3N6-0819D 		Request Quote
XM-A3N7-0819C-01 N/A
0819A
 		N/A PE42543
QUOTE N/A pSemi N/A SP4T N/A 0.009 MHz N/A 18000 MHz N/A 3.2 dB N/A N/A 59 dBm N/A
XR-A3N7-0819C-01 		Request Quote
XM-A3N7-0819D N/A
0297_WEB
 		N/A PE42543
$440.00 N/A pSemi N/A SP4T N/A 0.009 MHz N/A 18000 MHz N/A 3.2 dB N/A N/A 59 dBm N/A
XR-A3N7-0819D 		Request Quote
XM-A3N9-0409C-01 N/A
0409A
 		N/A PE42524
$932.00 N/A pSemi N/A SP2T N/A 10 MHz N/A 40000 MHz N/A 2.5 dB N/A 31.5 dBm N/A 41.5 dBm N/A
XR-A3N9-0409C-01 		Request Quote
XM-A3N9-0409D N/A
0220_WEB
 		N/A PE42524
$428.00 N/A pSemi N/A SP2T N/A 10 MHz N/A 40000 MHz N/A 2.5 dB N/A 31.5 dBm N/A 41.5 dBm N/A
XR-A3N9-0409D 		Request Quote
XM-A4E5-0419C-01 N/A
0419A
 		N/A PE42525
$1,668.00 N/A pSemi N/A SP4T N/A 0.009 MHz N/A 27000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A4E5-0419C-01 		Request Quote
XM-A4E5-0419D N/A
0449_WEB
 		N/A PE42525
$651.00 N/A pSemi N/A SP4T N/A 0.009 MHz N/A 50000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A4E5-0419D 		Request Quote
XM-A6J9-0409C-01 N/A
0409A
 		N/A PE42525
$923.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 40000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A6J9-0409C-01 		Request Quote
XM-A6J9-0409C-02 N/A
0409A
 		N/A PE42525
$923.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 27000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A6J9-0409C-02 		Request Quote
XM-A6J9-0409C-03 N/A
0409A
 		N/A PE42525
$923.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A6J9-0409C-03 		Request Quote
XM-A6J9-0409D N/A
0456_WEB
 		N/A PE42525
$300.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A6J9-0409D 		Request Quote
XM-A7A9-0404C-01 N/A
0404B
 		N/A PE42525
$841.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 27000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A7A9-0404C-01 		Request Quote
XM-A7A9-0404D N/A
0547_WEB
 		N/A PE42525
$263.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A7A9-0404D 		Request Quote
XM-A7C3-0404C-01 N/A
0404C
 		N/A PE42525
$789.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 27000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A7C3-0404C-01 		Request Quote
XM-A7C3-0404D N/A
0680_WEB
 		N/A PE42525
$261.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A7C3-0404D 		Request Quote
XM-A7C4-0404C-01 N/A
0404D
 		N/A PE42525
$789.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 27000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A7C4-0404C-01 		Request Quote
XM-A7C4-0404D N/A
0681_WEB
 		N/A PE42525
$261.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-A7C4-0404D 		Request Quote
XM-B7J4-0619C-01 N/A
0619A
 		N/A PE42442
$1,010.00 N/A pSemi N/A SP4T N/A 30 MHz N/A 6000 MHz N/A 3.25 dB N/A 35 dBm N/A 58 dBm N/A
XR-B7J4-0619C-01 		Request Quote
XM-B7J4-0619D N/A
0990_WEB
 		N/A PE42442
$306.00 N/A pSemi N/A SP4T N/A 30 MHz N/A 6000 MHz N/A 3.25 dB N/A 35 dBm N/A 58 dBm N/A
XR-B7J4-0619D 		Request Quote
XM-B7P8-0619C-01 N/A
0619B
 		N/A PE42442
$1,032.00 N/A pSemi N/A SP4T N/A 30 MHz N/A 6000 MHz N/A 3.25 dB N/A 35 dBm N/A 58 dBm N/A
XR-B7P8-0619C-01 		Request Quote
XM-B7P8-0619D N/A
0991_WEB
 		N/A PE42442
$328.00 N/A pSemi N/A SP4T N/A 30 MHz N/A 6000 MHz N/A 3.25 dB N/A 35 dBm N/A 58 dBm N/A
XR-B7P8-0619D 		Request Quote
XM-C432-0409C-01 N/A
0409A
 		N/A PE42525
$721.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 50000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-C432-0409C-01 		Request Quote
XM-C432-0409D N/A

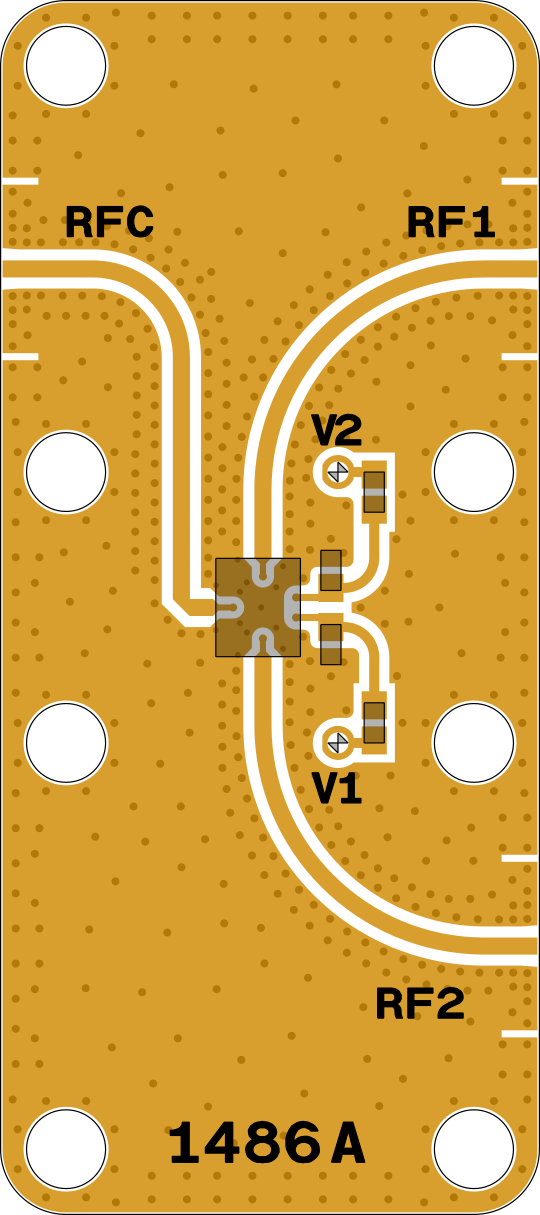

1486_WEB
 		N/A PE42525
$282.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 50000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-C432-0409D 		Request Quote
XM-C6L8-0409D N/A
0494_WEB
 		N/A PE42525
$300.00 N/A pSemi N/A SP2T N/A 0 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-C6L8-0409D 		Request Quote
XM-C7P3-0409D N/A
0456_WEB
 		N/A PE426525
$288.00 N/A pSemi N/A SP2T N/A N/A N/A N/A N/A N/A
XR-C7P3-0409D 		Request Quote
XM-C7P4-0419D N/A
0449_WEB
 		N/A PE426525
$623.00 N/A pSemi N/A SP4T N/A N/A N/A N/A N/A N/A
XR-C7P4-0419D 		Request Quote
XM-C7P6-0404D N/A
0547_WEB
 		N/A PE426525
$254.00 N/A pSemi N/A SP2T N/A N/A N/A N/A N/A N/A
XR-C7P6-0404D 		Request Quote
XM-C8J4-0404C-01 N/A
0404A
 		N/A PE42525
$696.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 50000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-C8J4-0404C-01 		Request Quote
XM-C8J4-0404D N/A

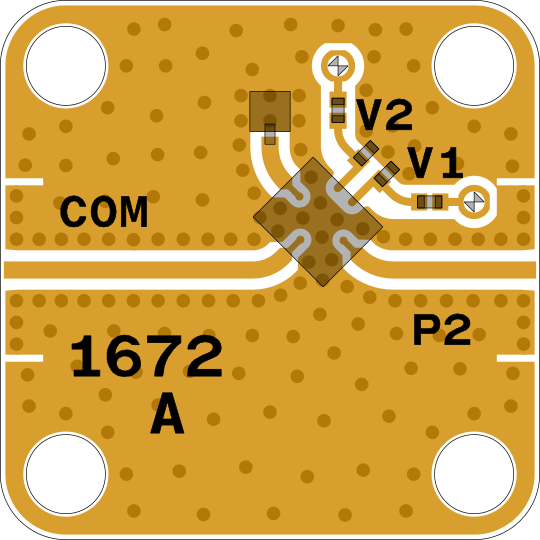

1672_WEB
 		N/A PE42525
$263.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-C8J4-0404D 		Request Quote
XM-C8J5-0404C-01 N/A
0404A
 		N/A PE42525
$568.00 N/A pSemi N/A SP2T N/A 0.009 MHz N/A 50000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-C8J5-0404C-01 		Request Quote
XM-C8J5-0404D N/A
1673_WEB
 		N/A PE42525
QUOTE N/A pSemi N/A SP2T N/A 0.009 MHz N/A 60000 MHz N/A 4 dB N/A 35 dBm N/A 46 dBm N/A
XR-C8J5-0404D 		Request Quote
