XM Part Number |
Image |
Spec Sheet |
Buy Direct
|
Feature Mfr |
Type |
LO Level |
LO Low Freq |
LO High Freq |
RF Low Freq |
RF High Freq |
IF Low FreqMixer |
IF High Freq |
Gain |
RoHS |
Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XM-B9U6-0919C-01 |
 TBD |
Spec Sheet
N/A ADMV1014 |
QUOTE | Feature Mfr N/A ADI | Type N/A IQ | LO Level N/A 0 dBm | LO Low Freq N/A 5400 MHz | LO High Freq N/A 10250 MHz | RF Low Freq N/A 24000 MHz | RF High Freq N/A 44000 MHz | IF Low FreqMixer N/A 0 MHz | IF High Freq N/A 6000 MHz | Gain N/A 17 dB |
RoHS
N/A XR-B9U6-0919C-01 |
Request Quote |
| XM-B9U6-0919D |

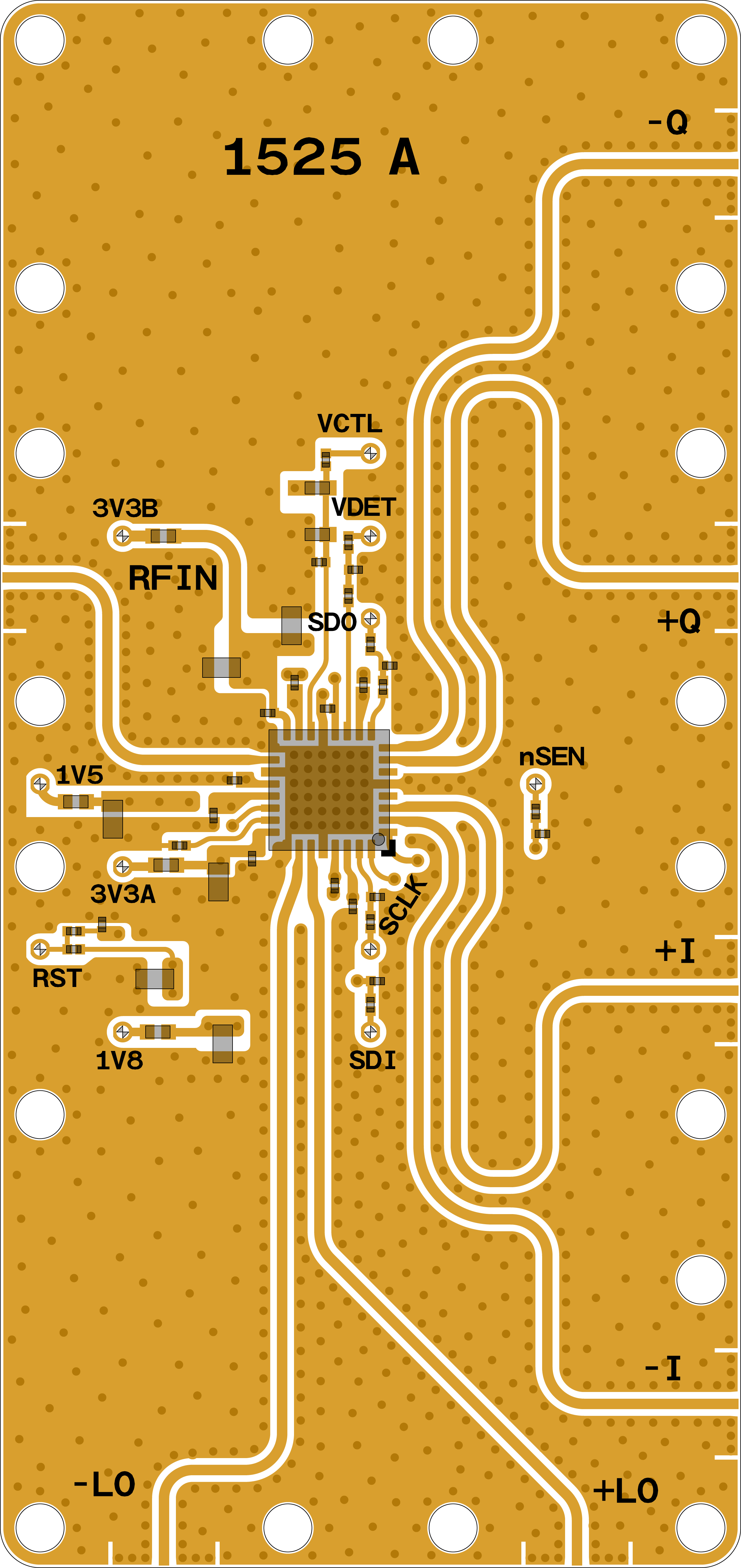

 1525_WEB |
Spec Sheet
N/A ADMV1014 |
$618.00 | Feature Mfr N/A ADI | Type N/A IQ | LO Level N/A 0 dBm | LO Low Freq N/A 5400 MHz | LO High Freq N/A 10250 MHz | RF Low Freq N/A 24000 MHz | RF High Freq N/A 44000 MHz | IF Low FreqMixer N/A 0 MHz | IF High Freq N/A 6000 MHz | Gain N/A 17 dB |
RoHS
N/A XR-B9U6-0919D |
Request Quote |
| XM-B9U7-0909C-01 |
TBD |
Spec Sheet
N/A ADMV1014 |
$1,611.00 | Feature Mfr N/A ADI | Type N/A IQ | LO Level N/A 0 dBm | LO Low Freq N/A 5400 MHz | LO High Freq N/A 10250 MHz | RF Low Freq N/A 24000 MHz | RF High Freq N/A 44000 MHz | IF Low FreqMixer N/A 0 MHz | IF High Freq N/A 6000 MHz | Gain N/A 17 dB |
RoHS
N/A XR-B9U7-0909C-01 |
Request Quote |
| XM-B9U7-0909D |

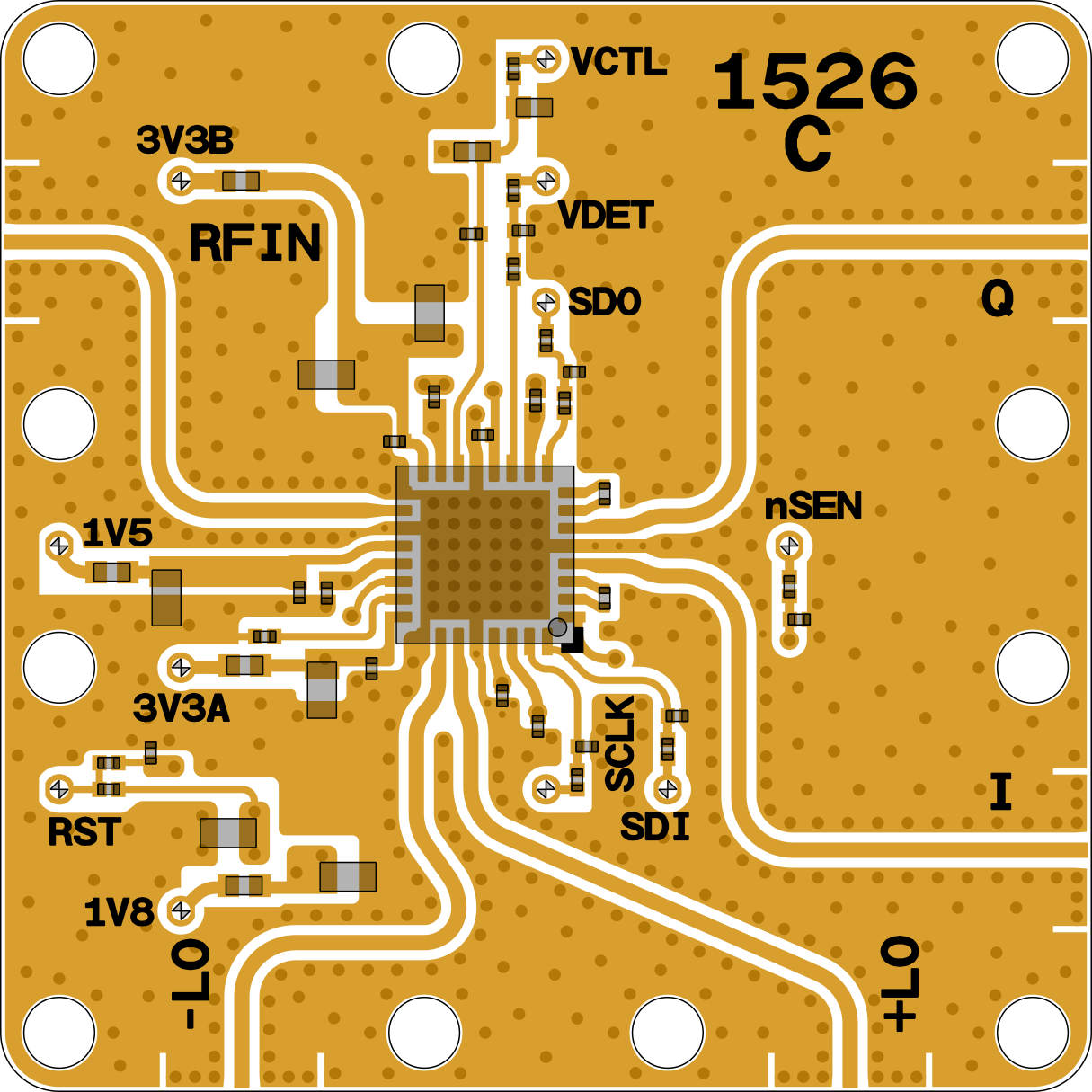

 1526_WEB |
Spec Sheet
N/A ADMV1014 |
$547.00 | Feature Mfr N/A ADI | Type N/A IQ | LO Level N/A 0 dBm | LO Low Freq N/A 5400 MHz | LO High Freq N/A 10250 MHz | RF Low Freq N/A 24000 MHz | RF High Freq N/A 44000 MHz | IF Low FreqMixer N/A 0 MHz | IF High Freq N/A 6000 MHz | Gain N/A 17 dB |
RoHS
N/A XR-B9U7-0909D |
Request Quote |
| XM-C6H9-0409D |
 1557_WEB |
Spec Sheet
N/A HMC977 |
$192.00 | Feature Mfr N/A ADI | Type N/A IQ | LO Level N/A 6 dBm | LO Low Freq N/A 8300 MHz | LO High Freq N/A 15700 MHz | RF Low Freq N/A 20000 MHz | RF High Freq N/A 28000 MHz | IF Low FreqMixer N/A 0 MHz | IF High Freq N/A 3000 MHz | Gain N/A 14 dB |
RoHS
N/A XR-C6H9-0409D |
Request Quote |
