Request Information

XM-C8J5-0404D
XR-C8J5-0404D RoHS

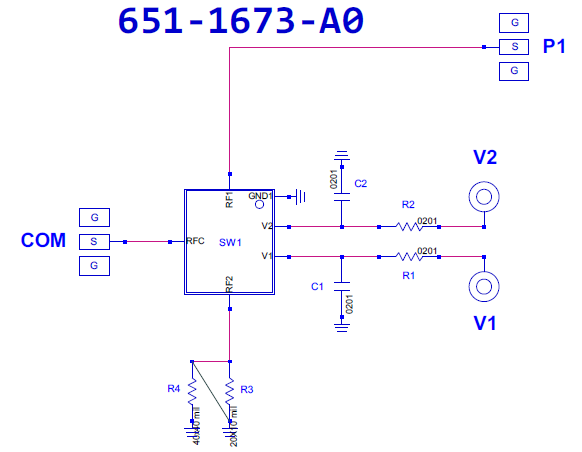

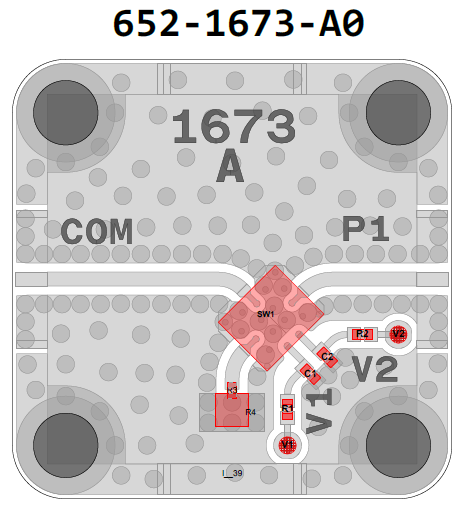

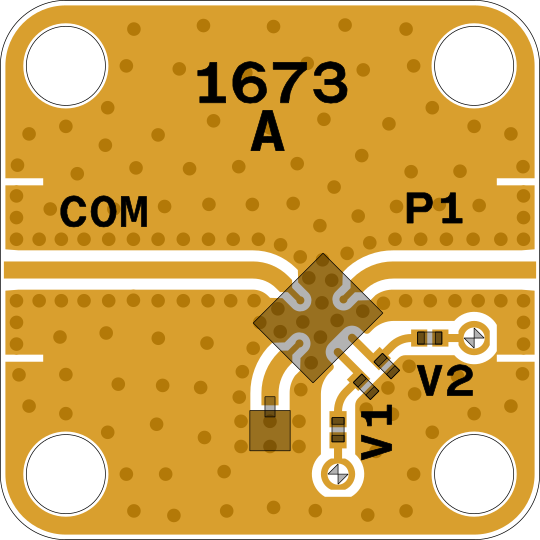

Switch, PE42525 [PCB: 1673]
Recommended Bias Controller: XM-C3R9-0404D-SP

Configurations

Unit of Measure

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42525

Low Freq

 N/A 0.009 MHz

High Freq

 N/A 60000 MHz

IL

 N/A 4 dB

P1dB

 N/A 35 dBm

IP3

 N/A 46 dBm

RoHS

 N/A XR-C8J5-0404D
