XM-B9H1-0609D
XR-B9H1-0609D RoHS

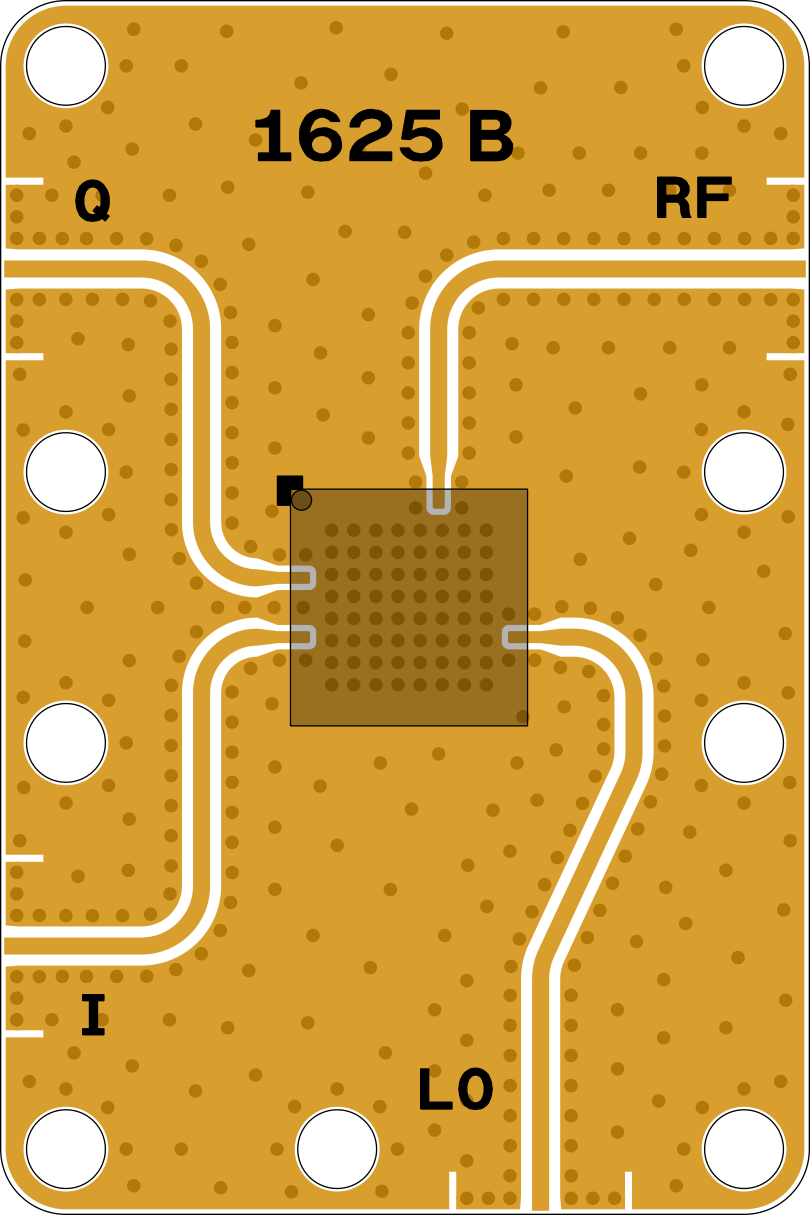

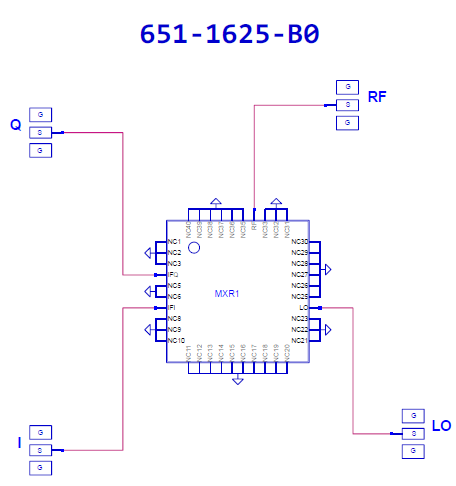

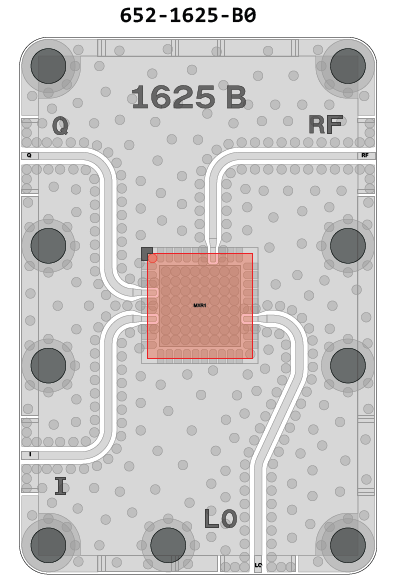

Mixer, MMIQ-0218HSM-2 [PCB: 1625]
LOlvl=26dBm RF=2G-18G LO=2G-18G IF=DC-3G CL=8dB
Unit of Measure

Product Page

 N/A Marki Microwave

Spec Sheet

 N/A MMIQ-0218HSM-2

XM Part Number

 N/A XM-B9H1-0609D

PKG

 N/A SMT

LO Level

 N/A 20 dBm

LO Low Freq

 N/A 2000 MHz

LO High Freq

 N/A 18000 MHz

RF Low Freq

 N/A 2000 MHz

RF High Freq

 N/A 18000 MHz

IF Low FreqMixer

 N/A 0 MHz

IF High Freq

 N/A 3000 MHz

Conv Loss

 N/A 8 dB

RoHS

 N/A XR-B9H1-0609D
