XM-D4M1-0404D

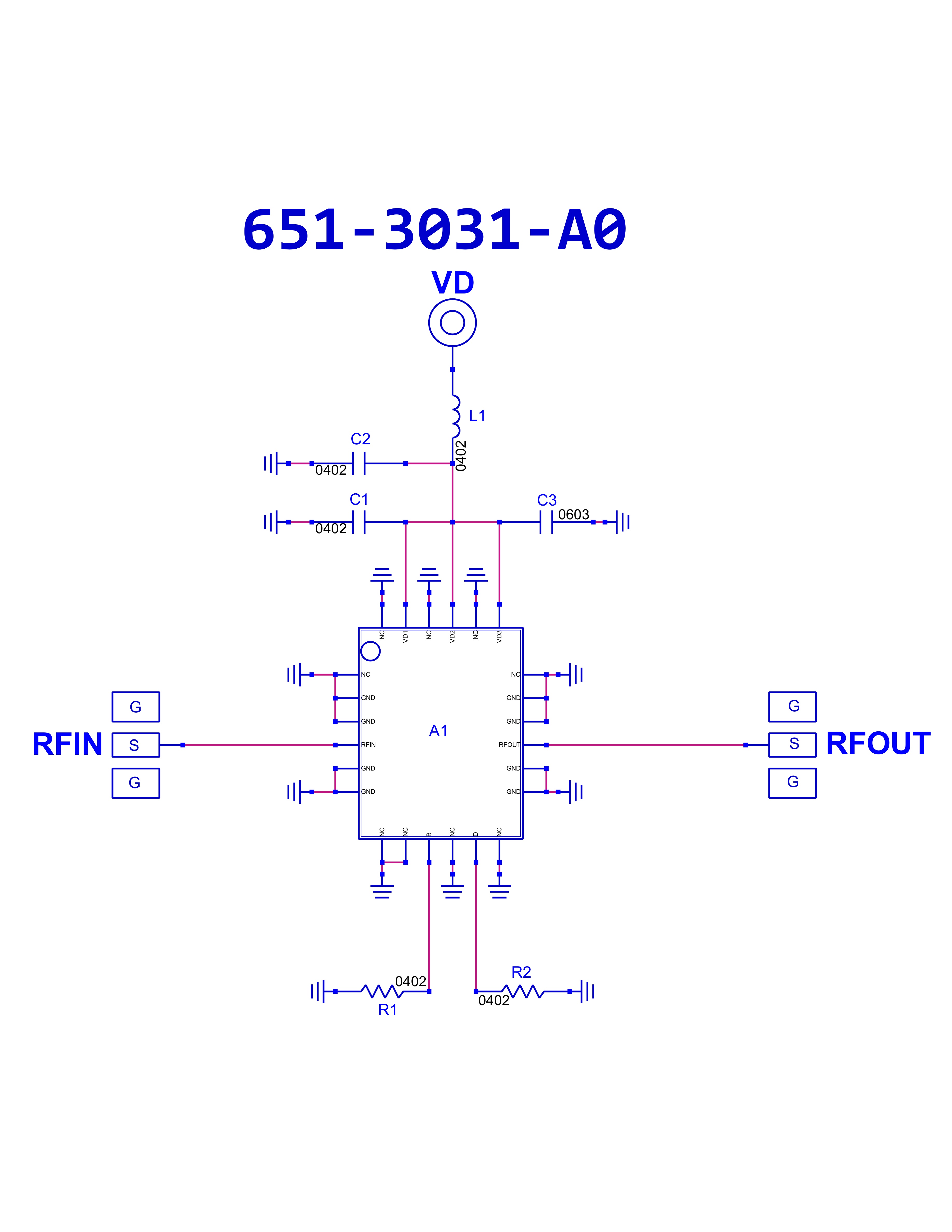

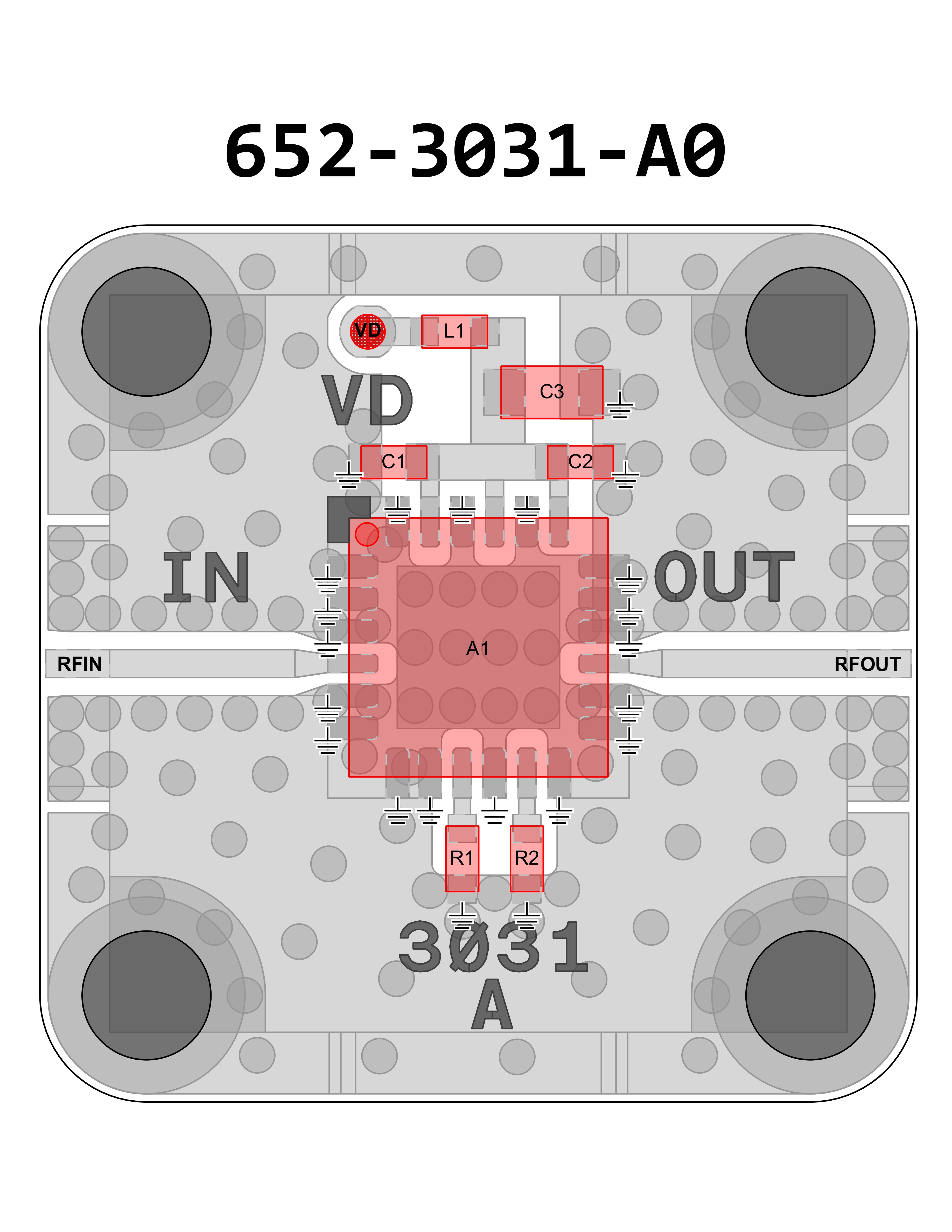

Amplifier, CHA3666-QAG [PCB: 2671]
F=5.8G-17GHz, P1=tied to GND, P2/N2=User-Input, F1=NC
Recommended Bias Controller: XM-D4R3-0404D
Product Page |
N/A UMS |
Spec Sheet |
N/A
CHA3666-QAG |
Low Freq |
N/A 5800 MHz |
High Freq |
N/A 17000 MHz |
Gain |
N/A 21 dB |
NF |
N/A 1.8 dB |
P1dB |
N/A 16 dBm |
IP3 |
N/A 26 dBm |
Power |
N/A 80 mW |
|
|
N/A |
