XM-D2D7-0404D
XR-D2D7-0404D RoHS

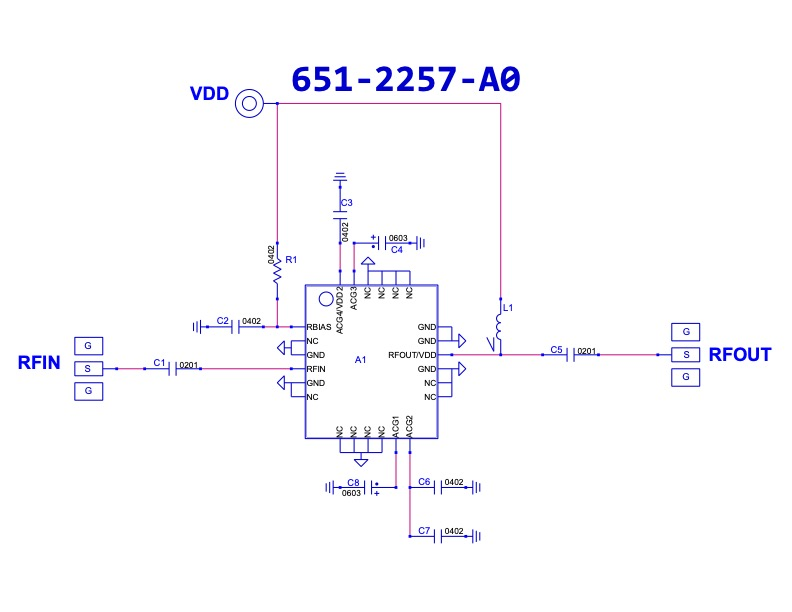

Amplifier, ADL9005ACPZN [PCB: 2257]
Recommended Bias Controller: XM-A2J9-0404D-SP
Unit of Measure

Product Page

 N/A ADI

Spec Sheet

 N/A ADL9005

Low Freq

 N/A 10 MHz

High Freq

 N/A 26500 MHz

Gain

 N/A 17.5 dB

NF

 N/A 2.5 dB

P1dB

 N/A 13.5 dBm

IP3

 N/A 26 dBm

RoHS

 N/A XR-D2D7-0404D
