XM-C8M3-0404D
XR-C8M3-0404D RoHS

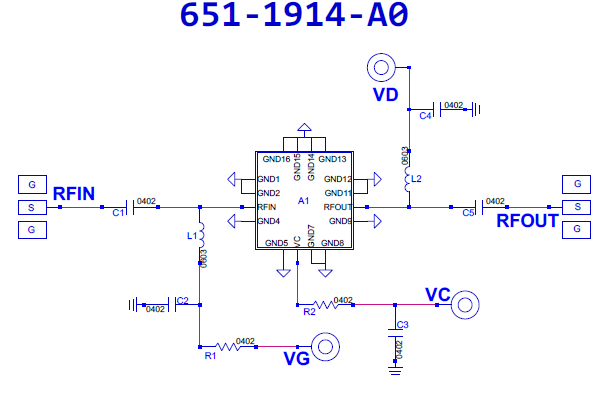

Amplifier, QPL1002 [PCB: 1914]
F=30M-3G
Recommended Bias Controller: XM-C9M8-0404D-SP

Configurations

Unit of Measure

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPL1002

Low Freq

 N/A 30 MHz

High Freq

 N/A 3000 MHz

Gain

 N/A 17 dB

NF

 N/A 1.2 dB

P1dB

 N/A 23 dBm

Bias Instruction

 N/A Power-up Sequence
1. Apply VG = -5.0V
2. Apply VD = +12.0V
3. Apply VC = +2.0V
4. Adjust VG more positive until IDQ reaches 50mA; -2.5V typical
Note: Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -5.0V
3. Adjust VC to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

RoHS

 N/A XR-C8M3-0404D
