XM-A7U2-0404D

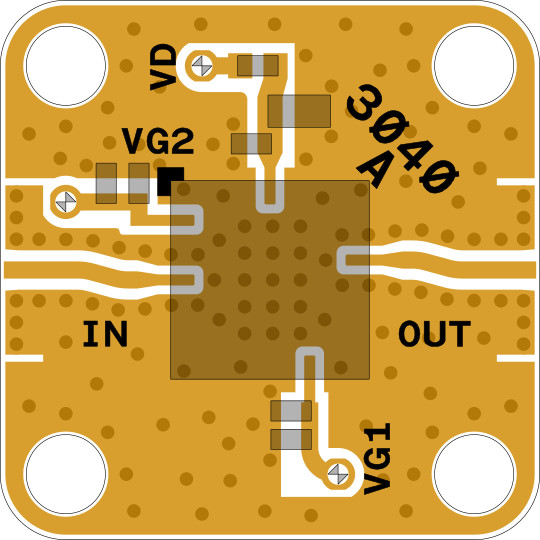

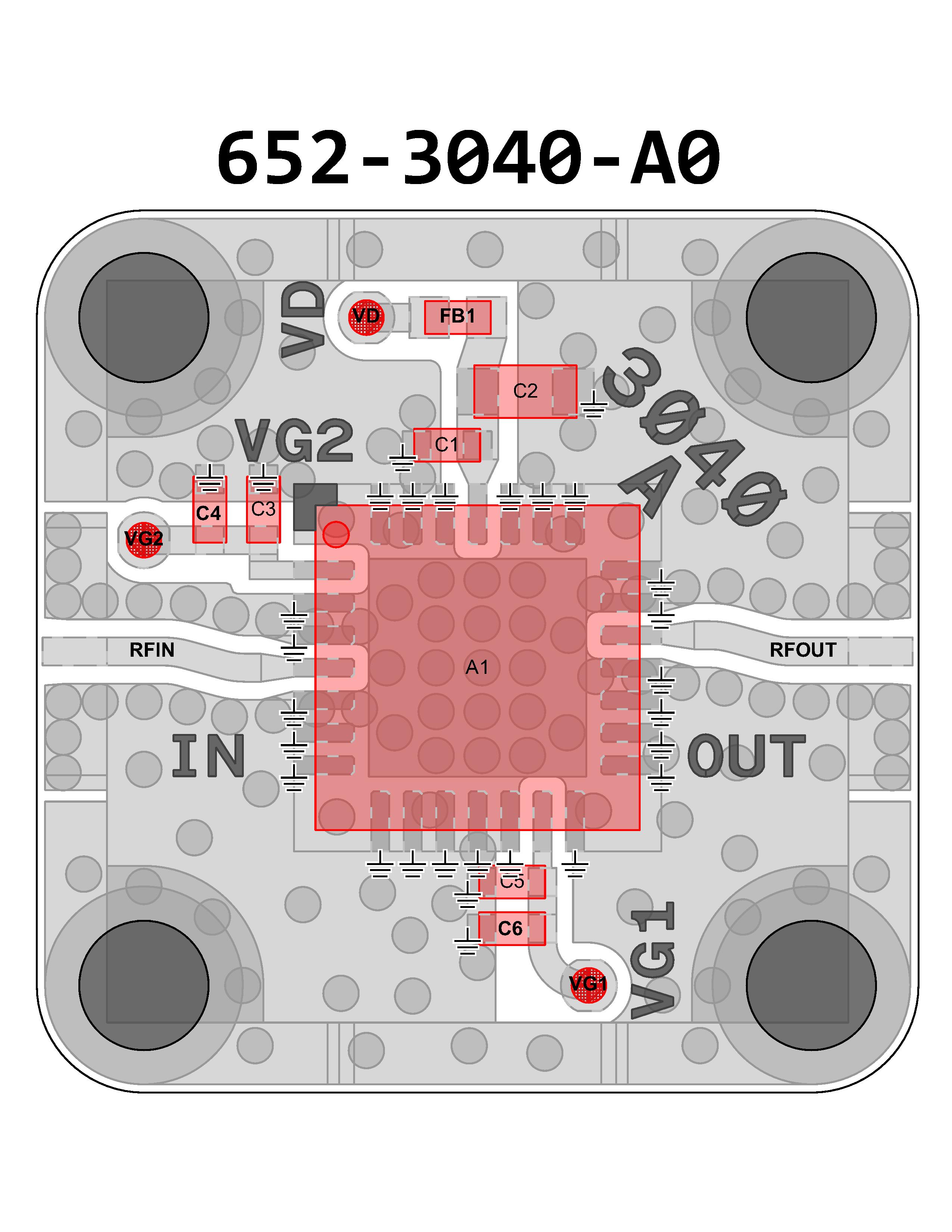

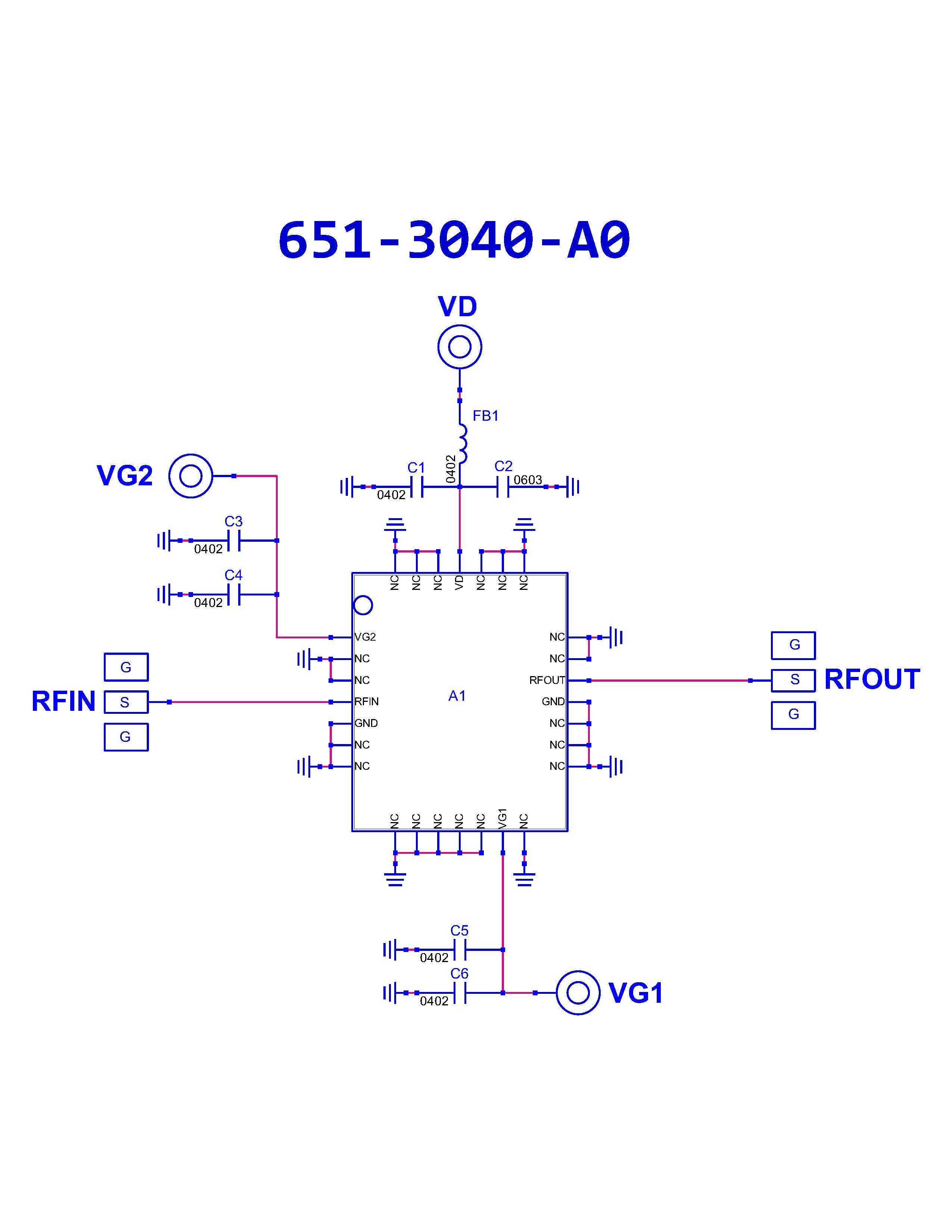

Amplifier, CHA3024/20 [PCB: 3040]
2-22 GHz, 20dBm Psat, 18dBm P1dB
Recommended Bias Controller: XM-A7U3-0404D
Product Page |
N/A UMS |
Spec Sheet |
N/A
CHA3024-QGG/20 |
Low Freq |
N/A 2000 MHz |
High Freq |
N/A 22000 MHz |
Gain |
N/A 15 dB |
NF |
N/A 3 dB |
P1dB |
N/A 18 dBm |
PSat |
N/A 20 dBm |
IP3 |
N/A 28 dBm |
Power |
N/A 100 mW |
|
|
N/A |
