XM-A2K7-0804C-01
XR-A2K7-0804C-01 RoHS

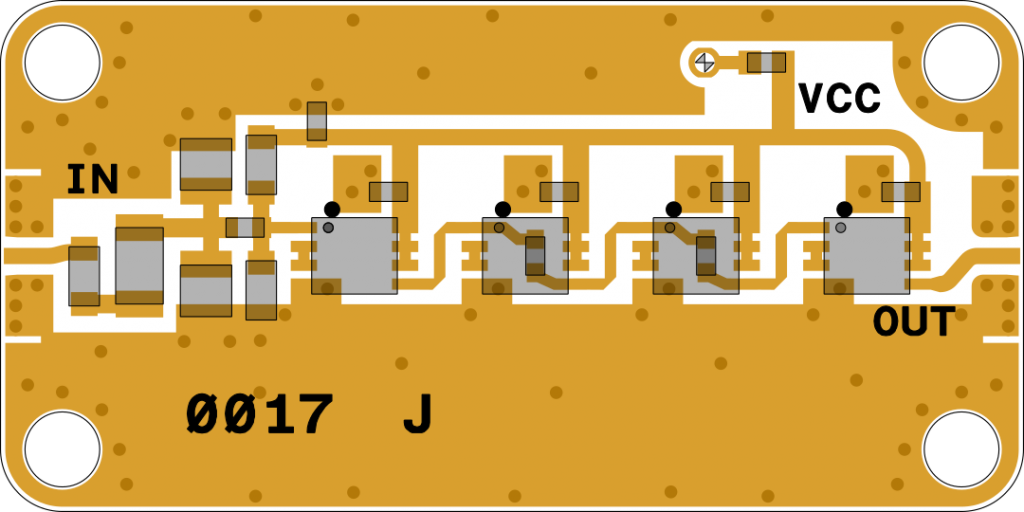

Divider, NC7SZ74K8X [PCB: 17]
N=4,8,16
Included Bias Controller: XM-A2J9-0404D
Connectorized Housing
SuperSMA Connectors

Configurations

Unit of Measure

Product Page

 N/A Fairchild

Spec Sheet

 N/A NC7SZ74-D

Low Freq

 N/A 1 MHz

High Freq

 N/A 300 MHz

Div N

 N/A 4,8,16

Pin Low

 N/A 7 dBm

Pin High

 N/A 17 dBm

Pout

 N/A 12 dBm

RoHS

 N/A XR-A2K7-0804C-01
