XM-C7J3-0604D
XR-C7J3-0604D RoHS

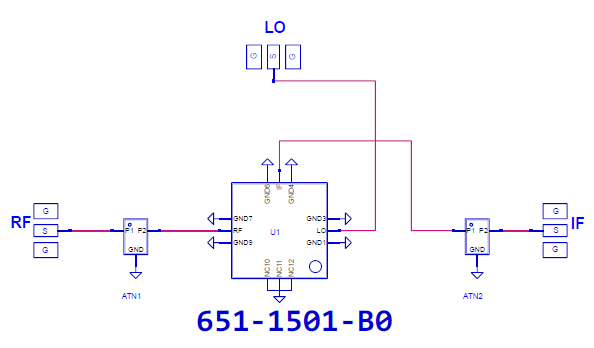

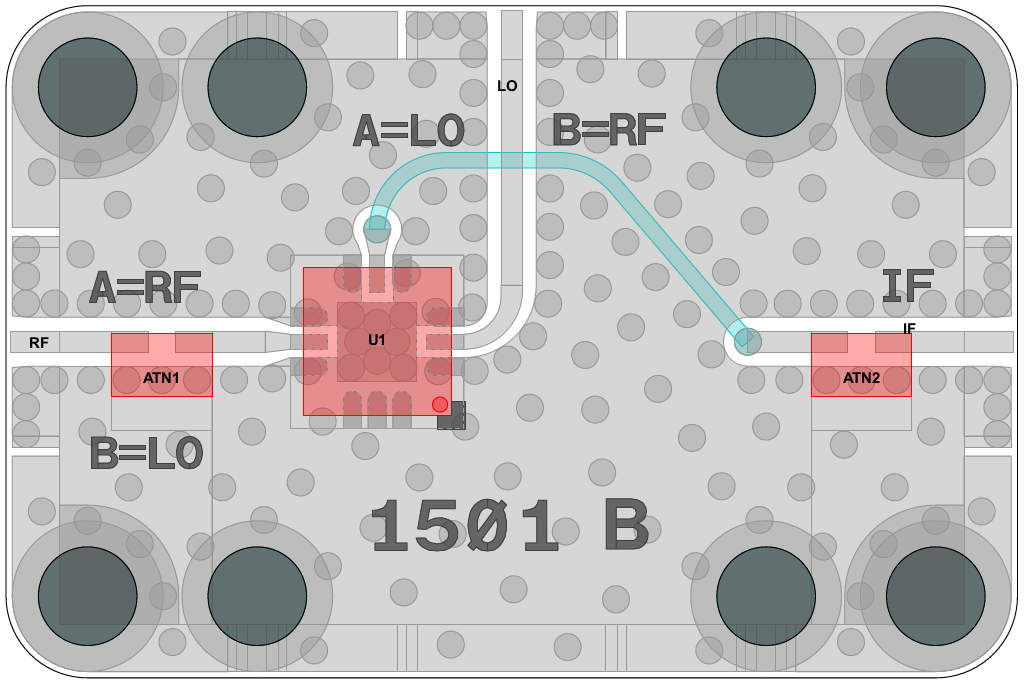

Mixer, MM1-0320HSM-2 [PCB: 1501]
LOlvl=17dBm RF=3.5G-20G LO=3.5G-20G IF=DC-4G CL=9dB
Unit of Measure

Product Page

 N/A Marki Microwave

Spec Sheet

 N/A MM1-0320HSM-2

PKG

 N/A SMT

LO Level

 N/A 17 dBm

LO Low Freq

 N/A 3500 MHz

LO High Freq

 N/A 20000 MHz

RF Low Freq

 N/A 3500 MHz

RF High Freq

 N/A 20000 MHz

IF Low FreqMixer

 N/A 0 MHz

IF High Freq

 N/A 4000 MHz

Conv Loss

 N/A 9 dB

RoHS

 N/A XR-C7J3-0604D
